6.3.2 Status display

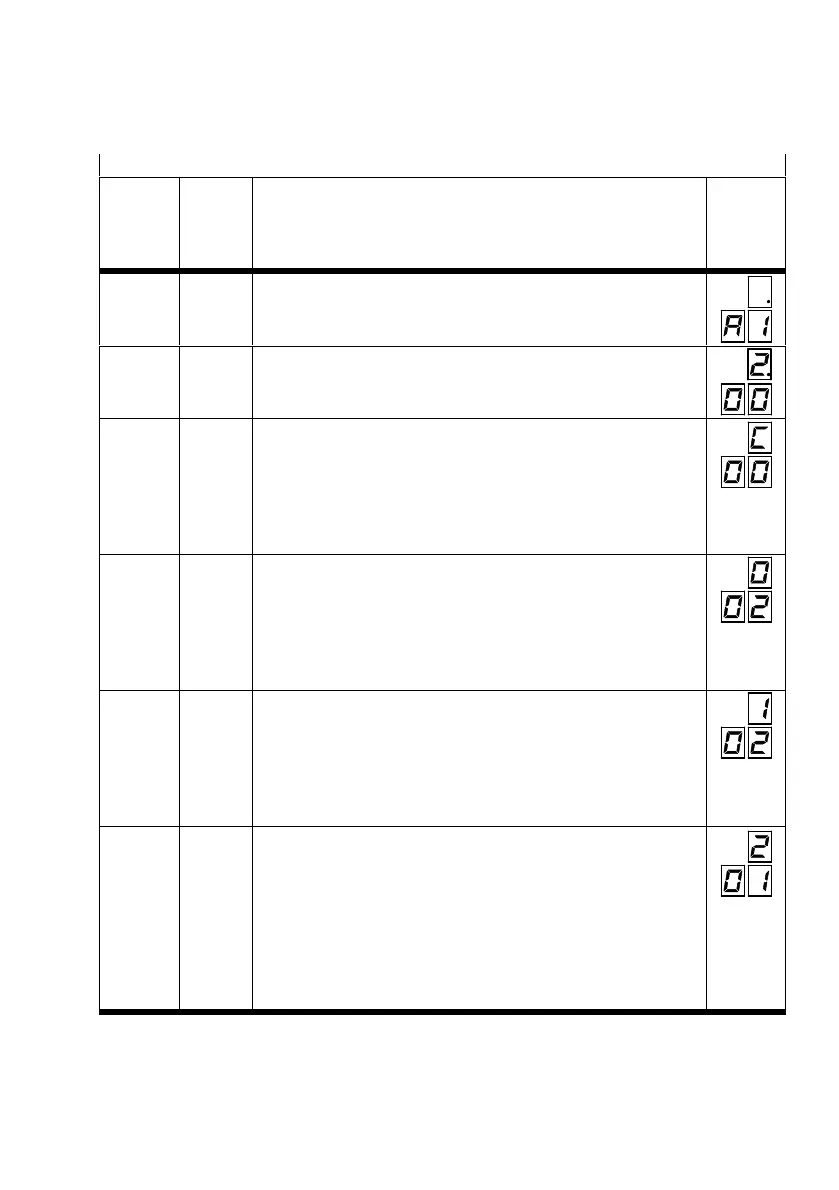

Possible status information
Status
display
Addi
tional
informa
tion
Description Example
“.”
flashes
On Initialization of the components at the axis connection n (here 1).
Point flashes during the entire initialization phase.
n nn After initialization of the components at the axis connection, the
firmware design is displayed for approx. 1 s (e.g. V 2.00).
C nn Parameterisation phase; additional information shows the current
status:
00: Wait for measurement system
01: Wait for drive type
02: Wait for axis data
03: Wait for movement test
0 nn Initialization successfully completed; there is no release present;
additional information shows the current operating mode:
02: Record mode
03: Direct mode
04: Commissioning
0P: Parameterisation
1 nn Ready for operation, additional information shows the current
operating mode:
02: Record mode
03: Direct mode
04: Commissioning
0P: Parameterisation
2 nn Record mode; additional information shows the last or current
positioning record nn (here 01).
01…99: Record 1 … 99
A0…A9: Record 100 … 109
b0…b9: Record 110 … 119
C0…C8: Record 120 … 128
Decimal point in the status display flashes when a positioning
command is active (MC = 0).
1) If the axis is not referenced:
Positive direction of movement: Starting position = 0 %, position mounting in % of cylinder length
Negative direction of movement: Starting position = 99 %, position trailing in % of cylinder length
