3 Mounting and pneumatic installation
Festo – P.BE-CPX-CMAX-SYS-EN – en 2017-09b – English 31
VPWP-10
With VPWP-10, H-rail mounting is not intended.
Mounting on an even surface with two M6 bolts.
The tightening torque is 9 Nm ±10 %.

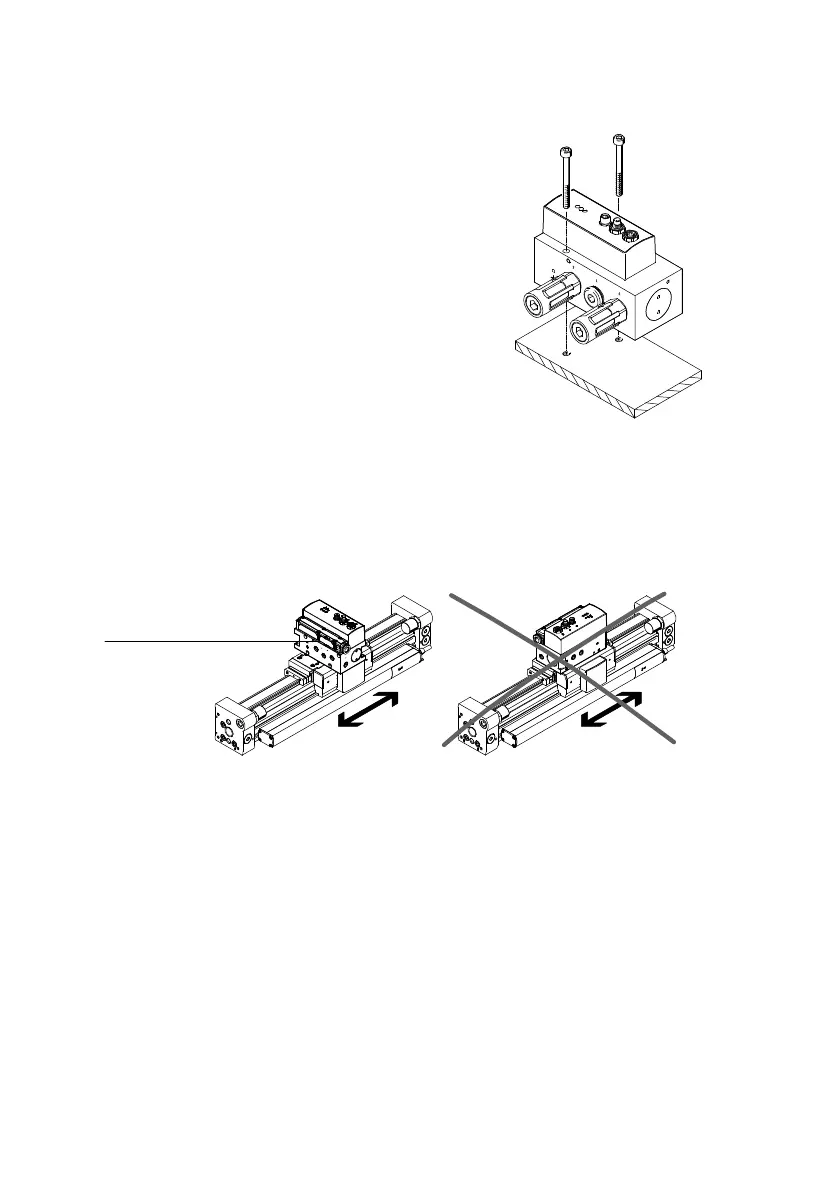

Fig. 3.7 Mounting VPWP-10
When mounting onto moving parts
Always mount the VPWP perpendicular to the direction of movement. Acceleration forces thus have
no influence on the valve slide setting.
3
2
1
1 Mounting at right angles to the direction of
movement
2 Not permitted: Mounting in the direction of
movement
3 Proportional directional control valve VPWP
Fig. 3.8 Mounting the VPWP onto moving parts
