6 Diagnostics and error handling
66 Festo – P.BE-CPX-CMAX-SYS-EN – en 2017-09b – English
Possible messages during a firmware update of the CMAX through the FCT plug-in

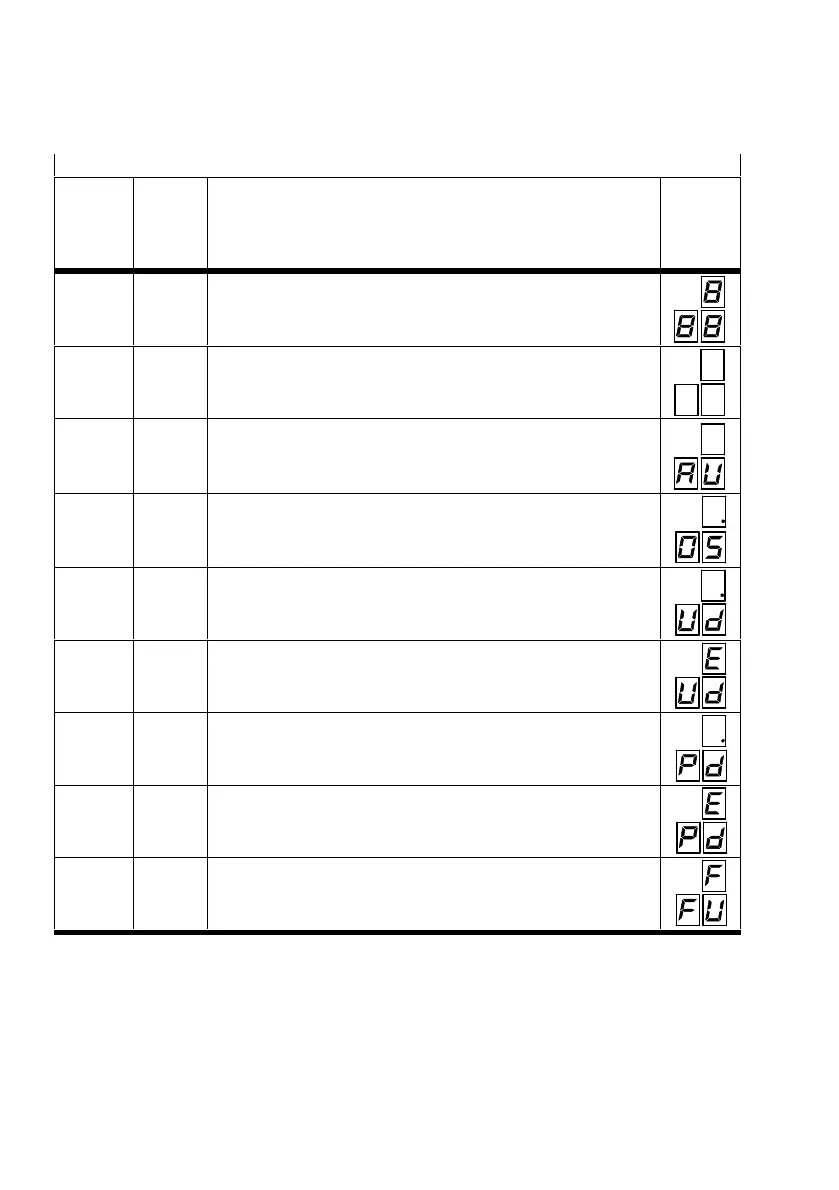

Possible status information
Status
display
Addi
tional
informa
tion
Description Example
8 88 System initialisation
Off Off Waiting for the end of initialisation of the CPX bus node
Off AU Firmware has to be downloaded (Await Update)
“.”
flashes
nn Download firmware file, current progress nn in %
“.”
flashes
Ud Decompression of the firmware file (Uncompress Data)
E Ud Error during decompression of the firmware file (Error
Uncompress Data)
“.”
flashes
Pd Programming of the firmware file in the flash memory (program
data)
E Pd Error in programming the firmware file in the Flash memory (Error
Program Data)
F FU Firmware update successfully completed (Finished Firmware
Update)
