Festo CPX-FB13 - Details of the Module−Related Diagnosis

3. Diagnosis
3−17
Festo P.BE−CPX−FB13−EN en 0811c
3.5.4Details of the module−related diagnosis
One bit is reserved for every module (identifier byte)
assigned during configuration. A set bit means that there is a
diagnostic message in this I/O range.
5
1230467
Bit
Header byte of the module−related diagnosis
Length of the module−related diagnostic
block in bytes including the header byte.
1
Bit 7, 6 fixed at 01
0 111000

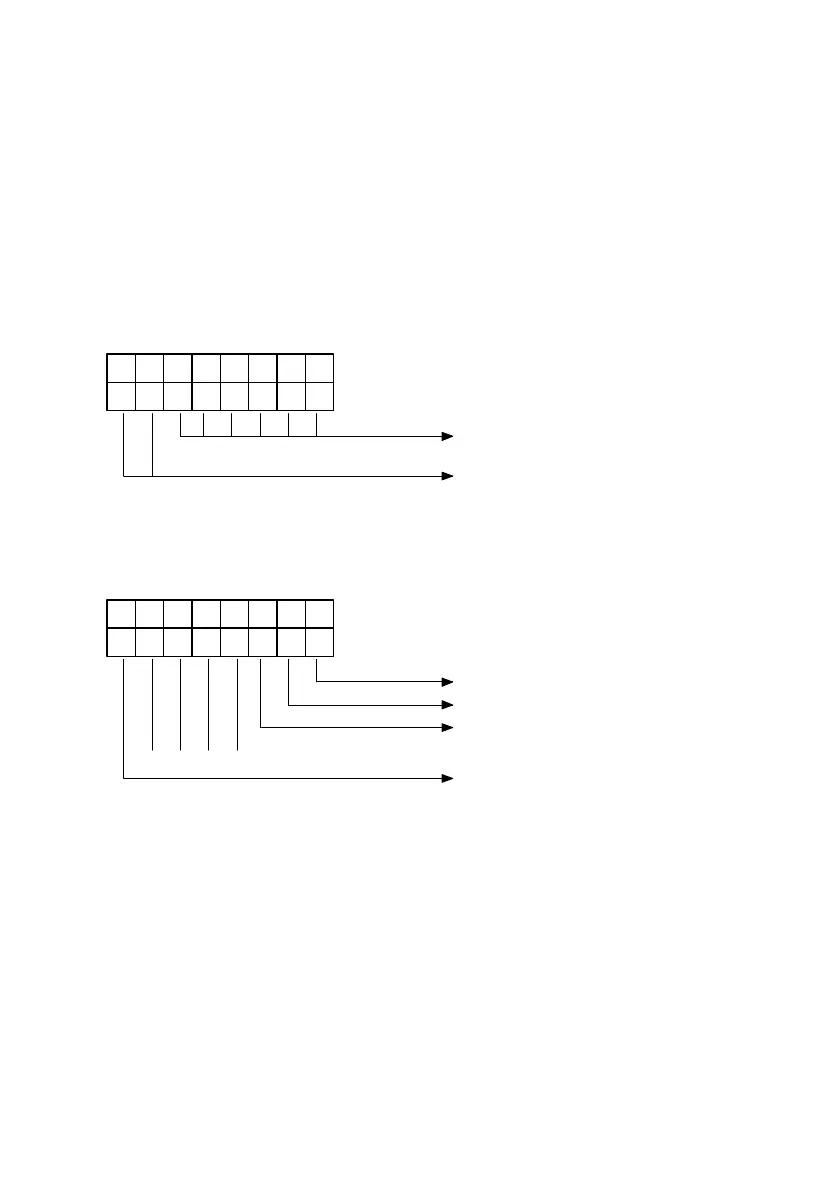

Fig.3/4: Header byte of the module−related diagnosis
5
1230467
Bit
Module−related diagnosis
Module 0 has diagnosis
Module 1 has diagnosis
Module 7 has diagnosis
...
...
Fig.3/5: Module−related diagnosis
