2. Commissioning
2−20
Festo P.BE−CPX−FB13−EN en 0811c
2.1.3 Device master file (GSD) and icon files
A Device Master File (GSD) is needed for the configuration
and programming of the CPX terminal with a programming
device or PC. The GSD contains all the required information
for the configuration and adjustment of the CPC terminal
using configuration and programming software, e.g. Siemens
STEP 7.
Reference sources Current GSD files can be found
on the Festo Internet pages
under: www.festo.com/fieldbus
GSD files You will require one of the following files for the CPX terminal:
CPX_059E.GSD (German version)
CPX_059E.GSE (international version)
For some older controllers, the GSD can be too large for the
available storage. In this case, you will receive support
through the Festo technical hotline. You can
reach them by
e−mail at: tshq@de.festo.com.
Symbol files To represent the CPX terminal in your configuration software,
you will find symbol files for Festo CPX terminals at
www.festo.com/fieldbus: Integration of these symbol files is
explained on the following pages:

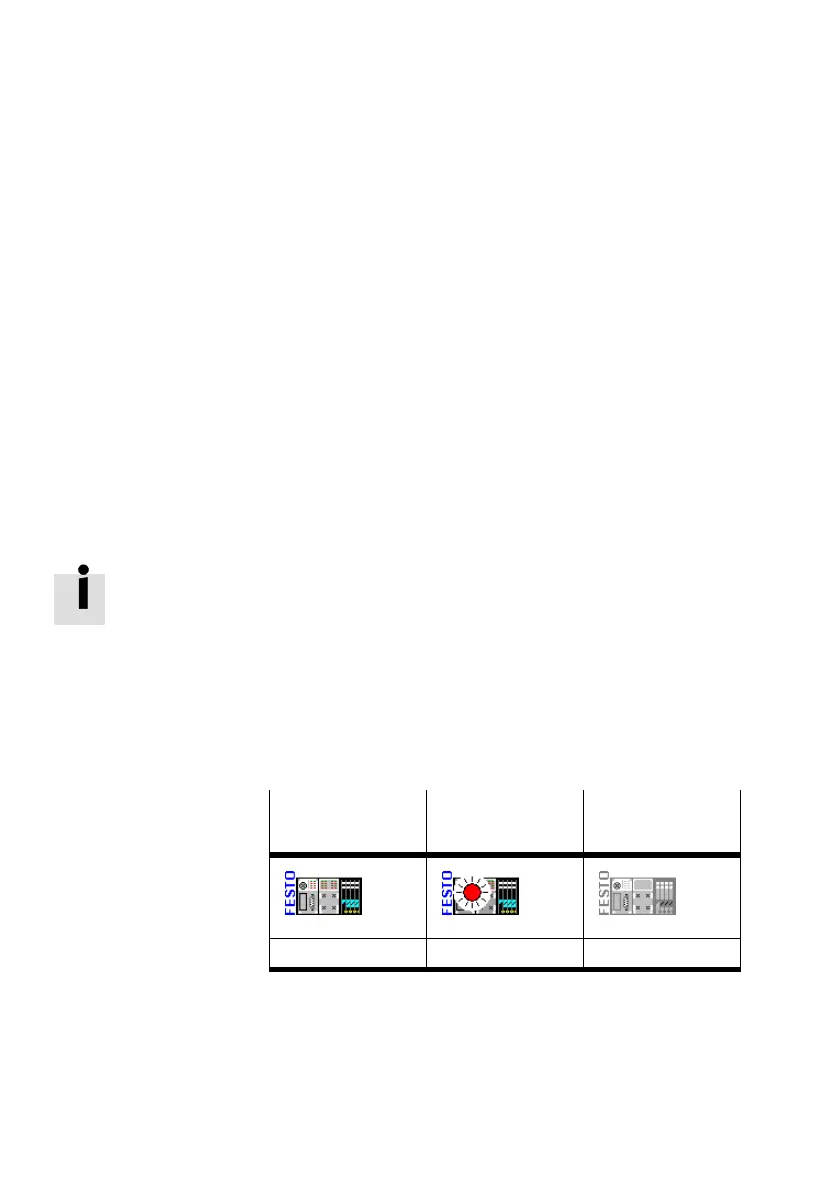

Normal operating
status
Diagnostic case Special operating
status
File: Pb_cpx_n.dib File: Pb_cpx_d.dib File: Pb_cpx_s.dib
Tab.2/13: Icon files for configuration software
