Festo CPX-FB13 - Field Bus Interface

1. Installation
1−19
Festo P.BE−CPX−FB13−EN en 0811c
1.3.3 Field bus interface
There is a 9−pin sub−D socket on the CPX terminal for
connecting it to the field bus.
This connection serves for the incoming and continuing field
bus cable. You can connect the CPX terminal with the field
bus plug from Festo type FBS−SUB−9−GS−DP−B.
Note
Only the Festo field bus plug complies with IP65.
Before connecting sub−D plugs from other manufacturers:
· Replace the two flat screws with bolts
(type UNC 4−40/M3x5).
Socket on
CPX
terminal
Pin Field bus
plug IP65
from Festo
1)
PROFIBUS−DP Description
1
2
3
4
5
6
7
8
9
Housing


B




A

Clamp strap
Screen
n.c.
RxD/TxD−P
CNTR−P
2)
DGND
VP
n.c.
RxD/TxD−N
n.c.
Screen
Connection to (FE) functional earth
not connected
Received/transmitted data P
Repeater control signal
2)
Data reference potential (M5V)
Power supply positive (P5V)
not connected
Received/transmitted data N
not connected
Connection to functional earth
1)
Type FBS−SUB−9−GS−DP−B (part no. 532216)
2)
The repeater control signal CNTR−P is in the form of a TTL signal.

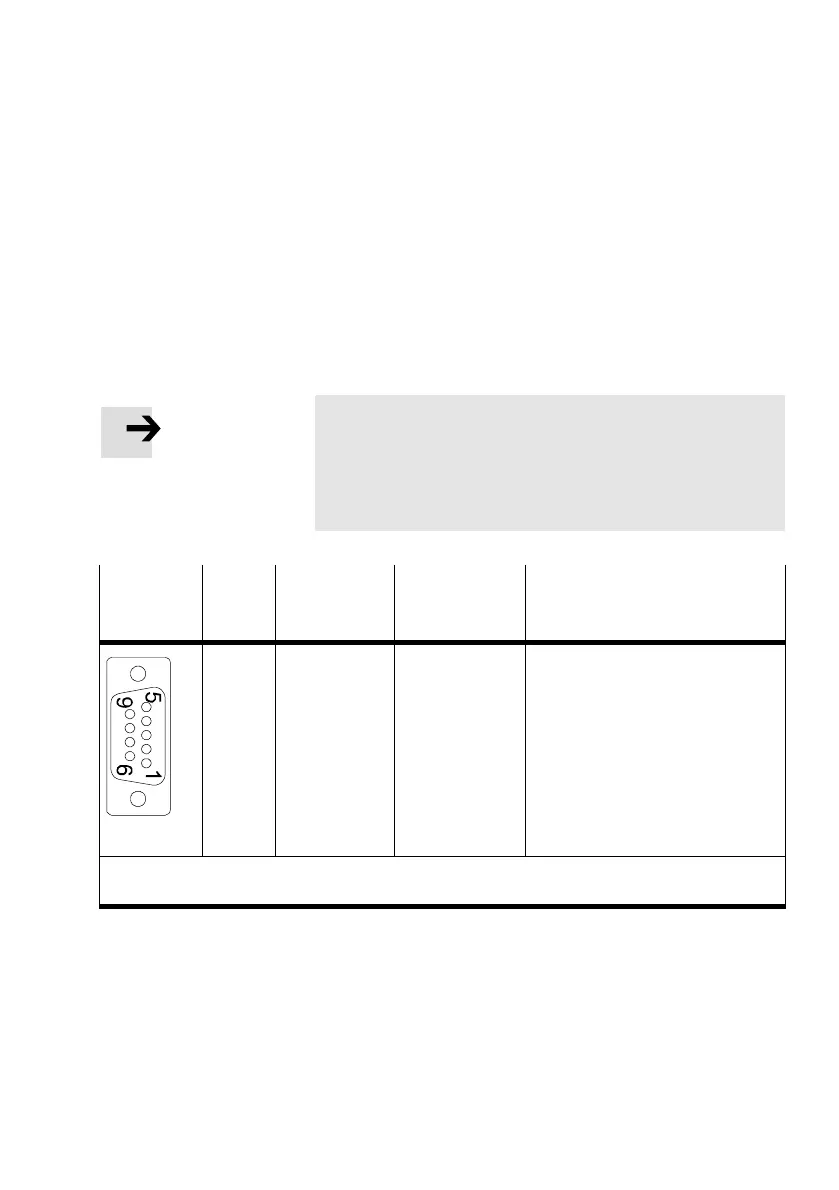

Tab.1/8: Pin assignment of the field bus interface of the CPX field bus node
