Festo CPX-FB13 - Application Example for Parameterisation

2. Commissioning
2−54
Festo P.BE−CPX−FB13−EN en 0811c
2.2.5 Application example for parameterisation
1
Input for 1st
sensor (with
default para−
meterisation)
2 Parameterised
input for 2nd
sensor (see text)
Î
Î
Ó
Ó
Ó
Ó
21
1. sensor
2. sensor

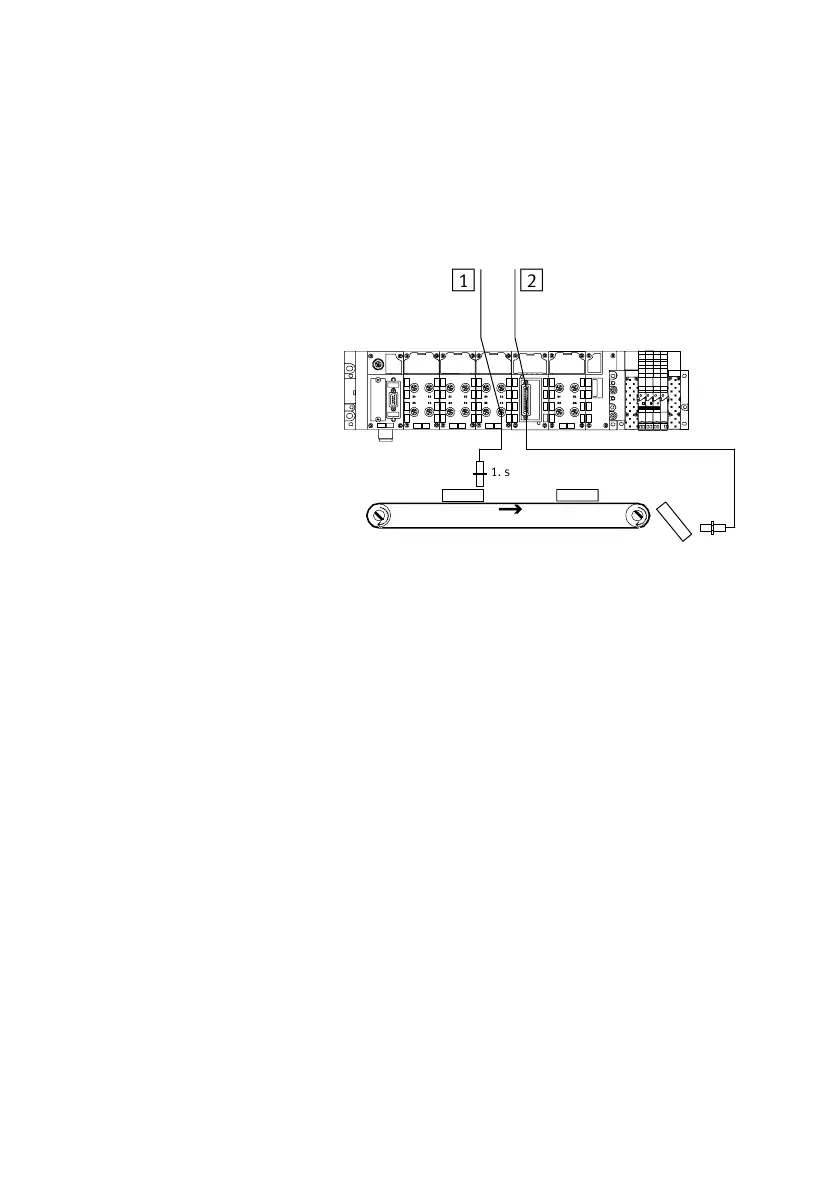

Fig.2/22: Application example for parameterisation of input debounce time and signal
extension time on the 2nd sensor
In the above application, packages are transpor ted on a
fast−moving conveyor belt.
For improvement of signal recording and processing, the
input for the 2nd sensor is parameterised as follows:
 Reduction of the input debounce time from 3ms (factory
setting) to 0.1ms: Recording shorter signals is possible.
This parameter is set for the complete module.
 Signal extension time set to 50ms: Reliable recording of
the signals by the controller.
The value of this parameter is set for the complete
module, but must be activated/deactivated separately for
each input channel.
