1. Installation
1−21
Festo P.BE−CPX−FB13−EN en 0811c
1 Hinged cover with
display window
2 Blanking plug if
connection is not
used
3 Clamp strap for
screening/shield
connection
4 Field bus
incoming (IN)
5 Switch for bus
termination and
continuing field
bus
6 Field bus
continuing (OUT)
7 Only connected
capacitively
ON
AB AB
213
4
567
Bus in
Bus out

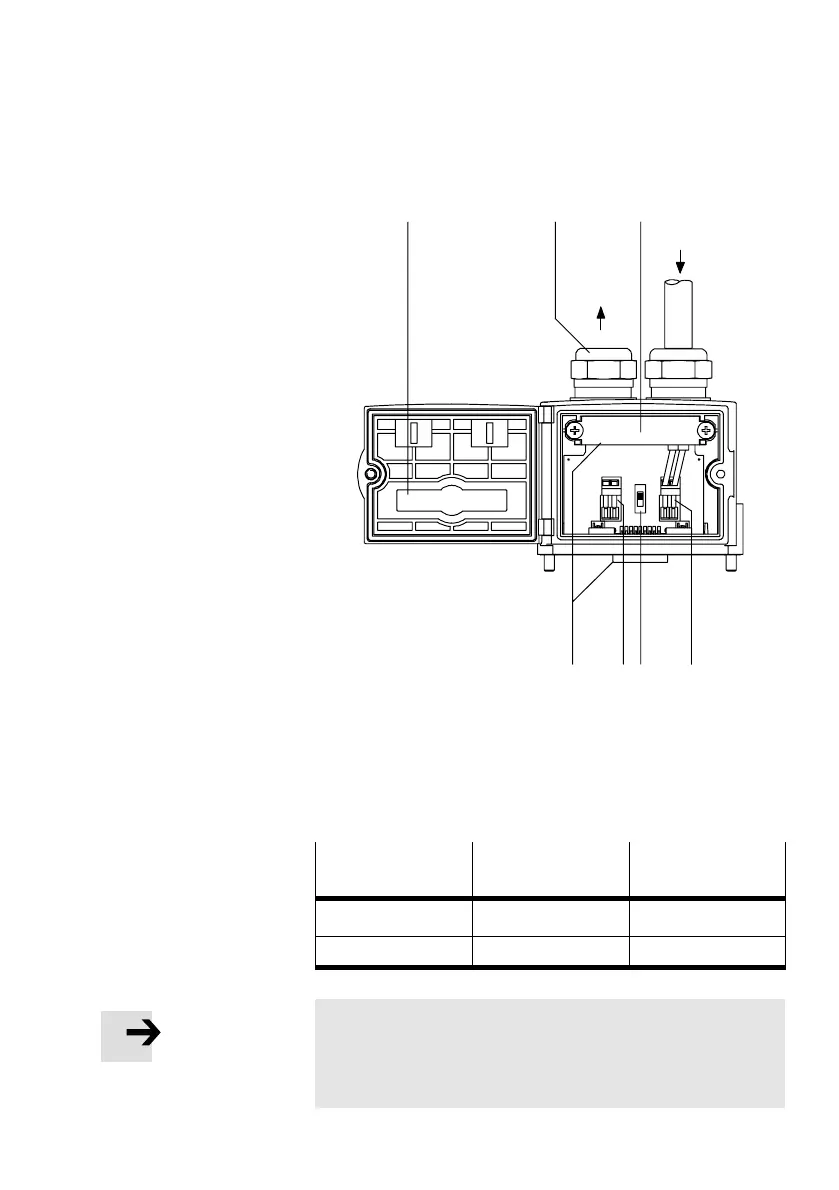

Fig.1/6: Field bus plug from Festo, type FBS−SUB−9−GS−DP−B
DI L switches With the switch in the field bus plug you can switch the
following:
Switch position
Bus terminal Continuing field
bus cable
OFF not switched switched on
ON switched switched off
Note
Note the type designation of your field bus plug. The new
plug type FBS−SUB−9−GS−DP−B switches the continuing field
bus cable off when the bus termination is switched on.
