5. Maintenance and conversion
5-20
Festo P .BE-MPA-EN en 1108e
3. Screw the sub-bases together . Tighten the screws in the
sequence 1, 2, 3 as shown in the diagram by hand.
Then tighten the screws with a torque of to 1.8 Nm (10 %).
1
2
2
1
3

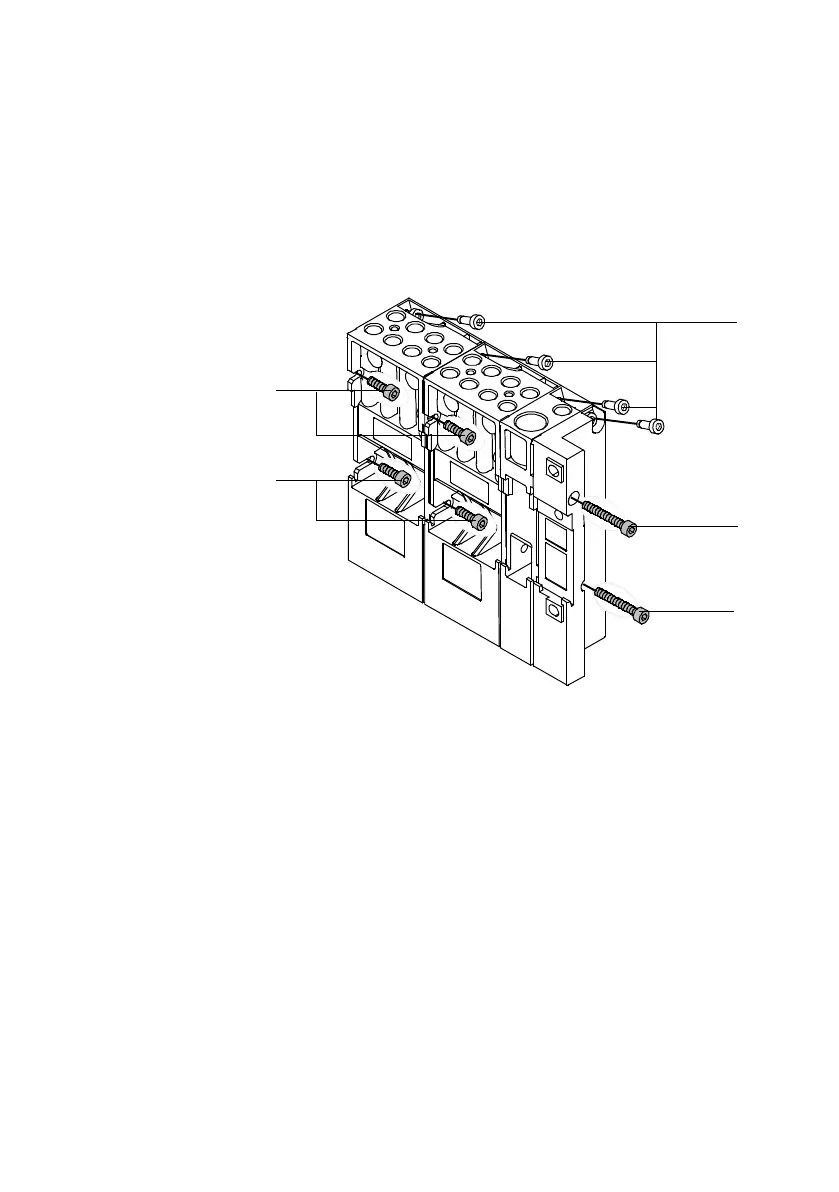

Fig. 5/8: Sub-base fittings
4. Mount the MPA-S valve terminal onto the mounting
surface (see Chapter 2 Fitting, “Mounting onto a wall” or
“Mounting onto an H-rail”).
5. Then install the pneumatic and electrical connections
(see Chapter 3 “Installation, connecting the MPA-S valve
terminal”).
