Dismantling Proceed as follows:
1. L o o sen all valve plates and blanking plates on the
sub-base from which you wish to remove the interlinking
board (see section 5.3.3).
2. Remove the electronics module from the sub-base
(see section 5.3.5).
3. Loosen the sub-base from the neighbouring components
(see section 5.3.6).
4. If you wish to remove the last interlinking board in front of
the right-hand MPA end plate, you must remove the end
piece type MPA from this interlinking board.
1 End piece
Type MPA
1

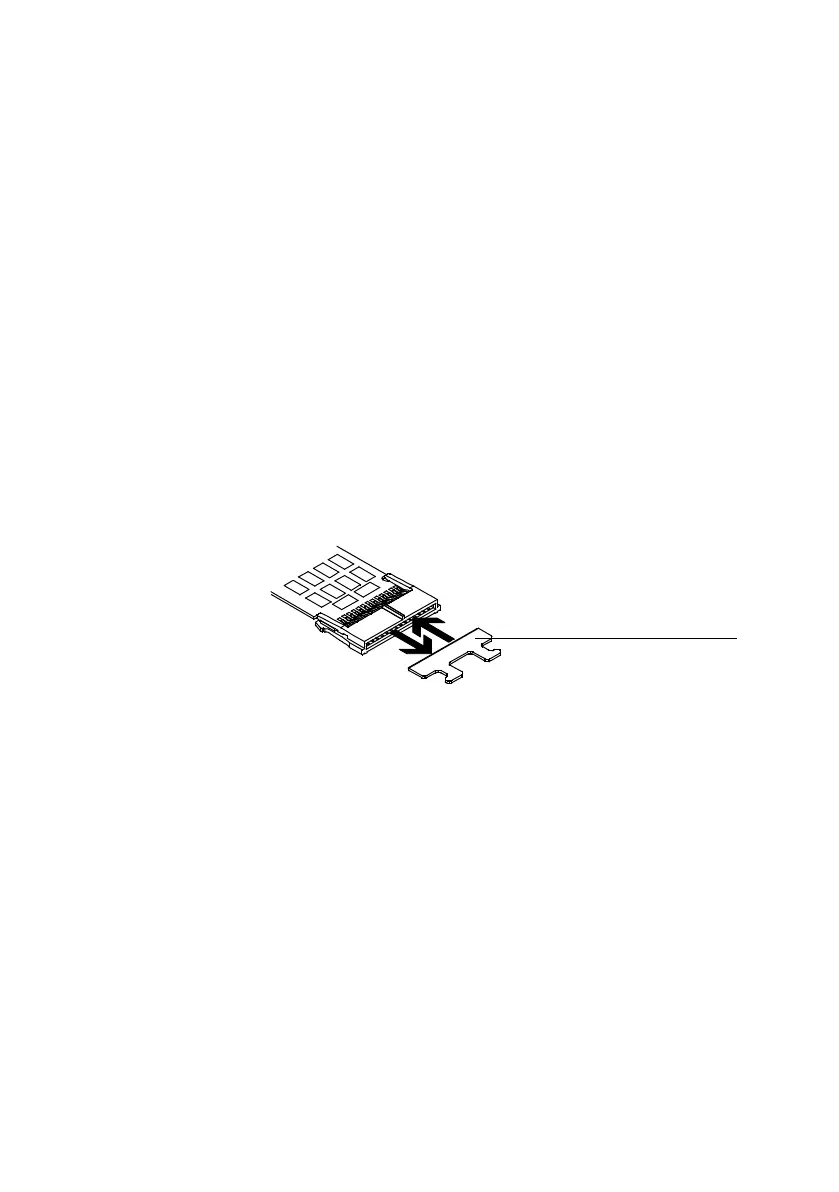

Fig. 5/9: Removing the end piece from the last interlinking board
5. Loosen the corresponding interlinking board from above
by unlocking the safety clips (e.g. with a small
screwdriver). Then pull the interlinking board to the right
out of the sub-base.
