5. Maintenance and conversion
5-23
Festo P.BE-MPA-EN en 1108e
1 Locking clip
1

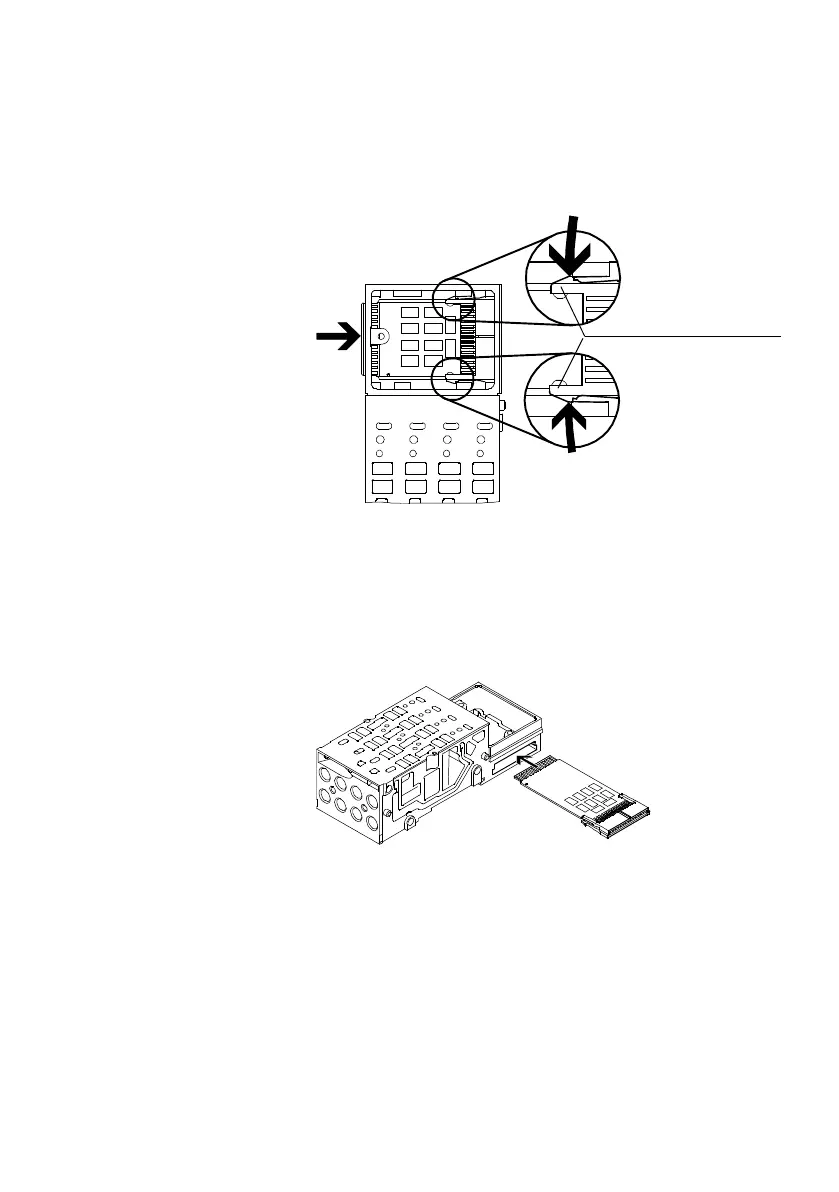

Fig. 5/10: Unlocking the interlinking board
Mounting Proceed as follows:
1. Push the interlinking board to be mounted into the
sub-base from the right until it clips into position.
Fig. 5/11: Mounting the interlinking board
2. If the mounted interlinking board is the last one in front of
the right-hand MP A end plate, you must insert the end
piece type MPA into this interlinking board.
