A. Technical appendix
A-12
Festo P .BE-MPA-EN en 1108e

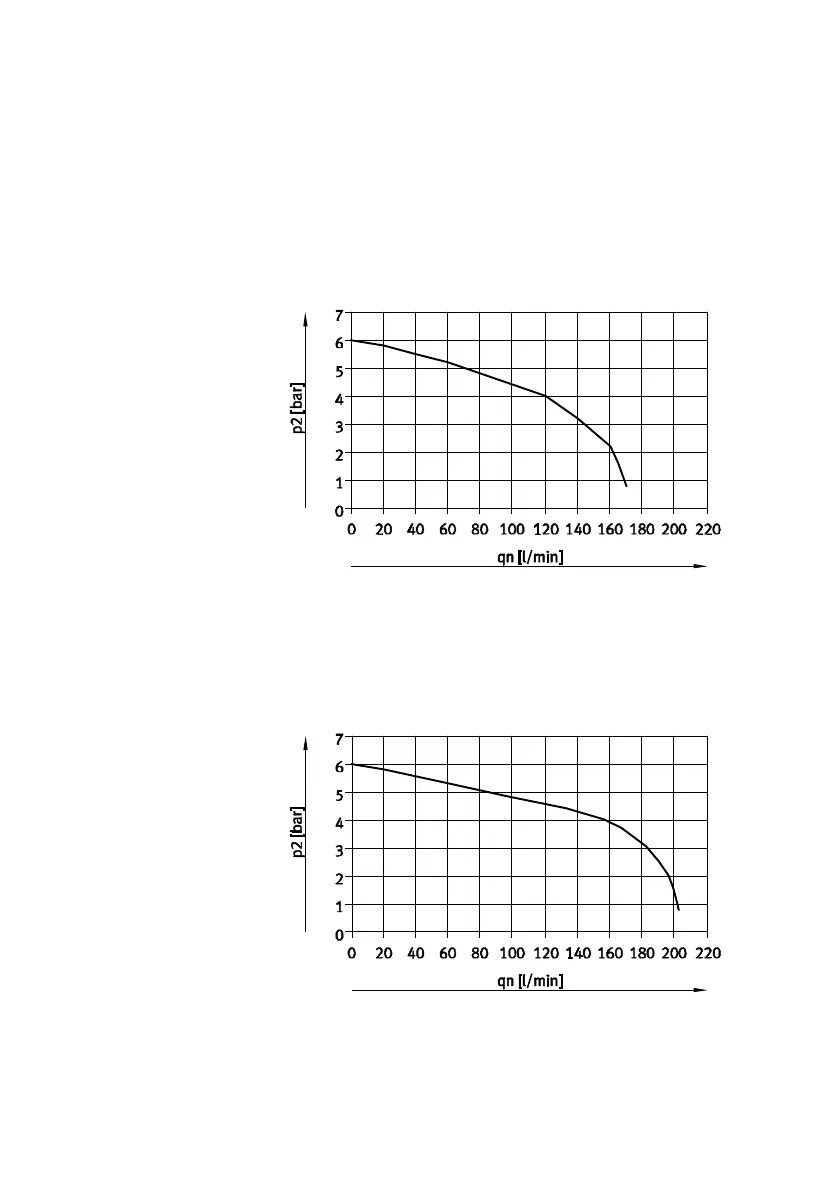

Flow diagrams of the pressure regulator plates
P pressure regulating valve MPA1
1 Output pressure
2 Flow rate
1
2
Fig. A/4: Diagram for size MPA1 of the P pressure regulator (ident. code: PF and PA):
Flow rate dependent on output pressure
B pressure regulating valve MPA1
1 Output pressure
2 Flow rate
1
2
Fig. A/5: Diagram for size MPA1 of the B pressure regulator (ident. code: PH and PC):
Flow rate dependent on output pressure
