A pressure regulating valve MPA1
1 Output pressure
2 Flow rate
1
2

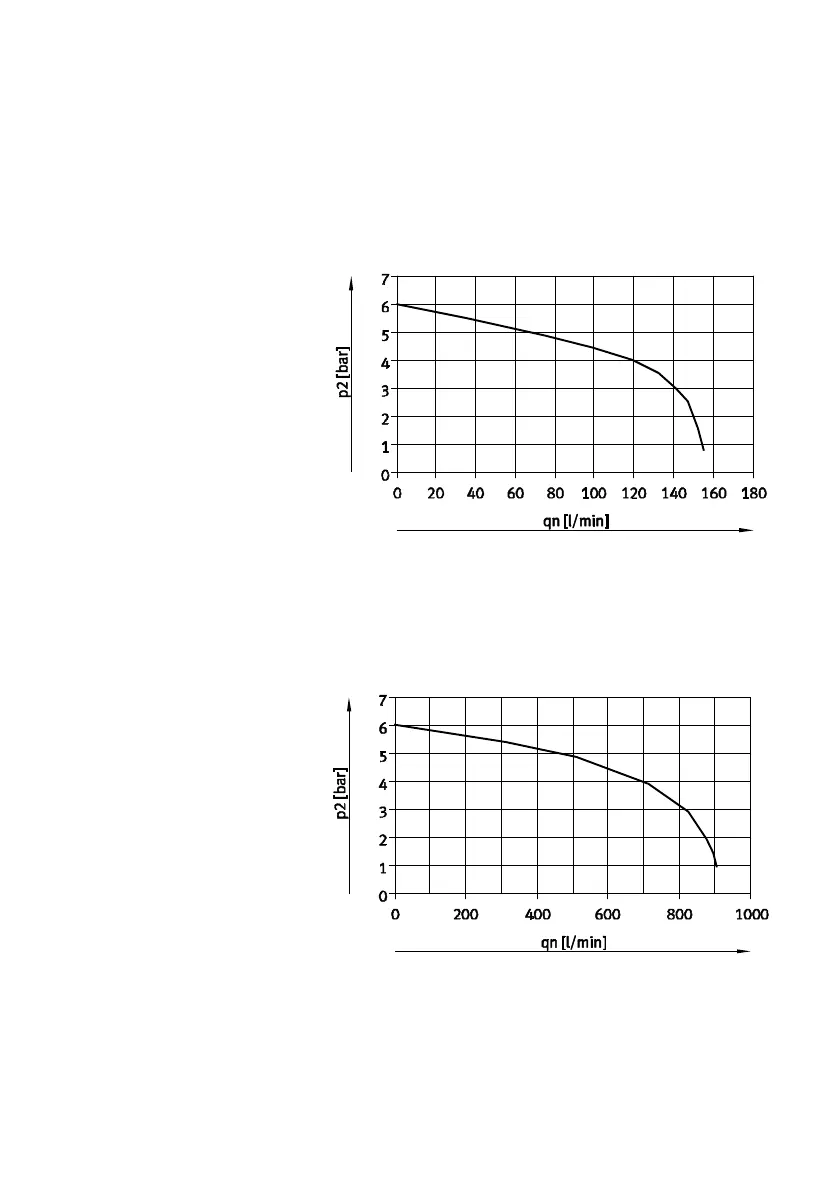

Fig. A/6: Diagram for size MPA1 of the A pressure regulator (ident. code: PG and PB):
Flow rate dependent on output pressure
P pressure regulating valve MPA2
1 Output pressure
2 Flow rate
1
2
Fig. A/7: Diagram for size MPA2 of the P pressure regulator (ident. code: PF and P A):
Flow rate dependent on output pressure
