6. Commissioning
104
© Festo Didactic 655633
6.10.4 Mitsubishi/MELSEC controller
• Controller: Mitsubishi FX1N
• Programming software: GX IEC Developer 6.01 or higher
1. Connect PC and PLC using the RS232/RS422 programming cable with PC adapter
2. Switch on power supply unit
3. Switch on the compressed air supply
4. Release the EMERGENCY-STOP pushbutton (if available)
5. Overall reset PLC memory:
– Wait until the PLC has carried out its test routines.
CPU FX1N
– Turn the mode selector switch to STOP.
– Start the PLC programming software.
– Select Online PLC Clear All and confirm with Yes.
– The memory reset is completed.
– The PLC is ready for program download.
6. Restore the file 04_HA_AS.pcd from the directory Sources\PLC Programs\
Release C\FX1N of the CD-ROM supplied

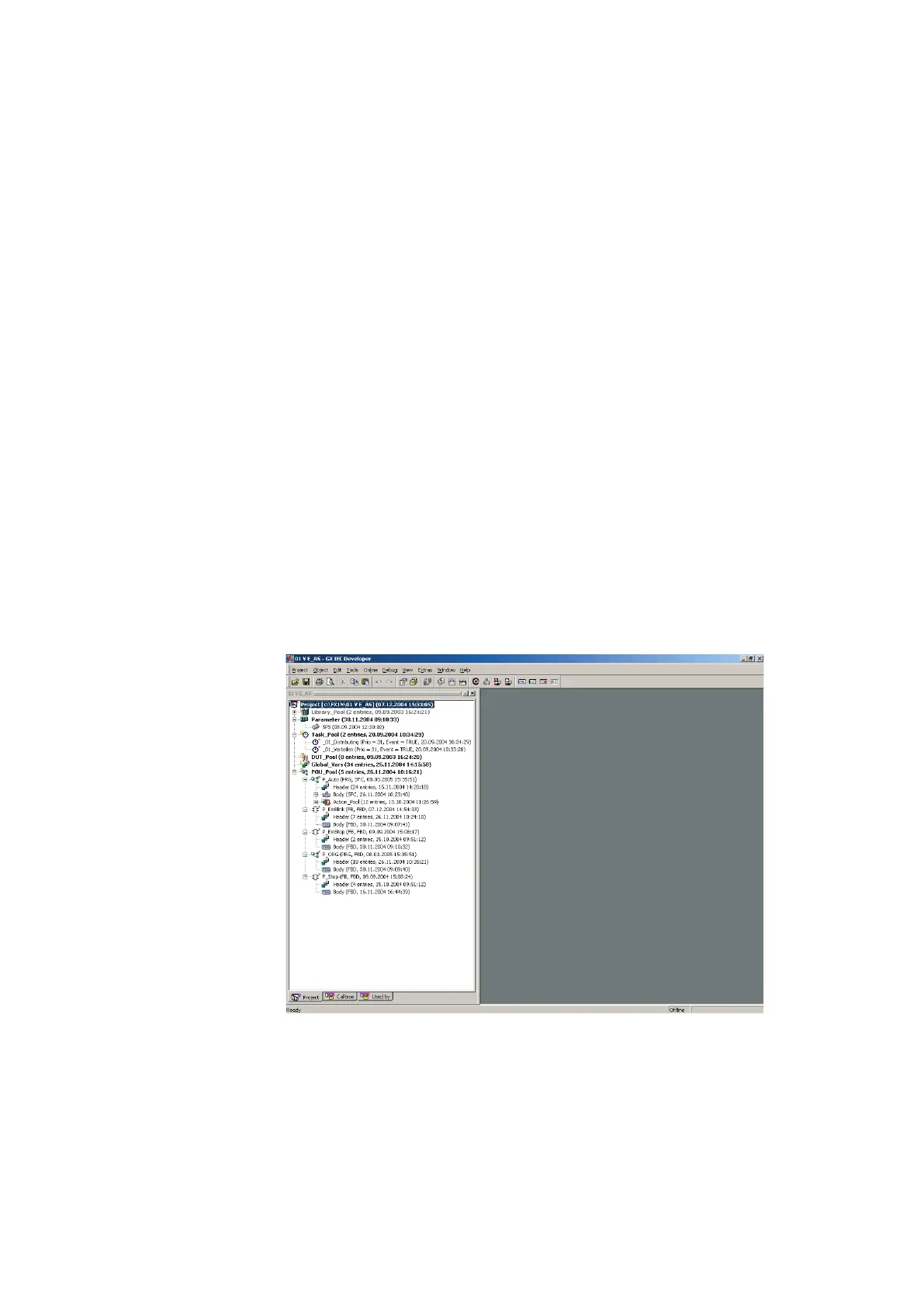

Extras Project Restore … select a project file (CD ROM: Sources\PLC Programs\Release C\FX1N)
04_HA_AS.pcd Open Select destination directory OK Confirm the following note (“After saving,…”) with OK
