3 Control sections and connections
The electro-pneumatic soft-start/quick exhaust valve MS6-SV-...-E-10V24-..., hereafter called
MS6-SV-E, conforms to category 4 with a maximum achievable performanc e level e in acc ordance with
DI N EN ISO 13849-1.
1
2
3
4
5
6
7
8
9
1 LED display ( Power LED and Error LED)
2 Flow c ontrol screw for soft start func tion
3 Pneumatic port 1 (compressed air inlet)
4 Electronic insert
5 Monoblock valve
6 Multi-pin plug socket NECA-... (accessories)
7 Pneumatic port 3 (exhaust)
8 Pre-assembled earthing strap
9 Pneumatic port 2 (compressed air outlet
port)

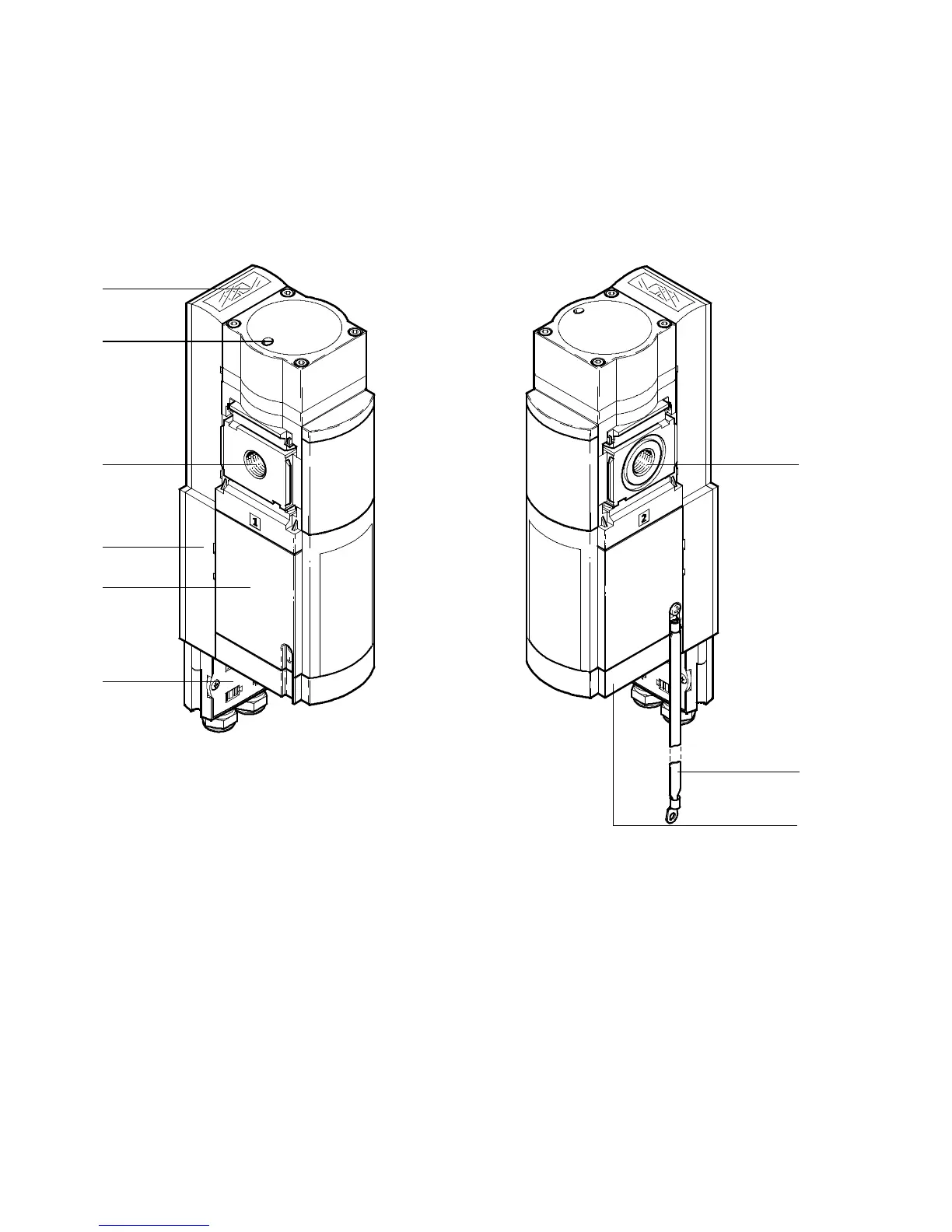

Fig. 1 Control sections and connections
