4.4 Signal contact
The signal c ontact is a potential-free N/O contact of a semiconductor relay. Through terminals 3 and 4
of the NEC A-... multi-pin plug socket, the contact c an be picked up in the feedback circuit of a safety
control system.
Note
Operation of the signal contact outside the permitted technical data results in its irre-
parable failure. Compliance with the specification must be ensured th rough an appro-
priate protective circuit.
Note
Assignment of these contacts is not required to achieve the safety c ategory.

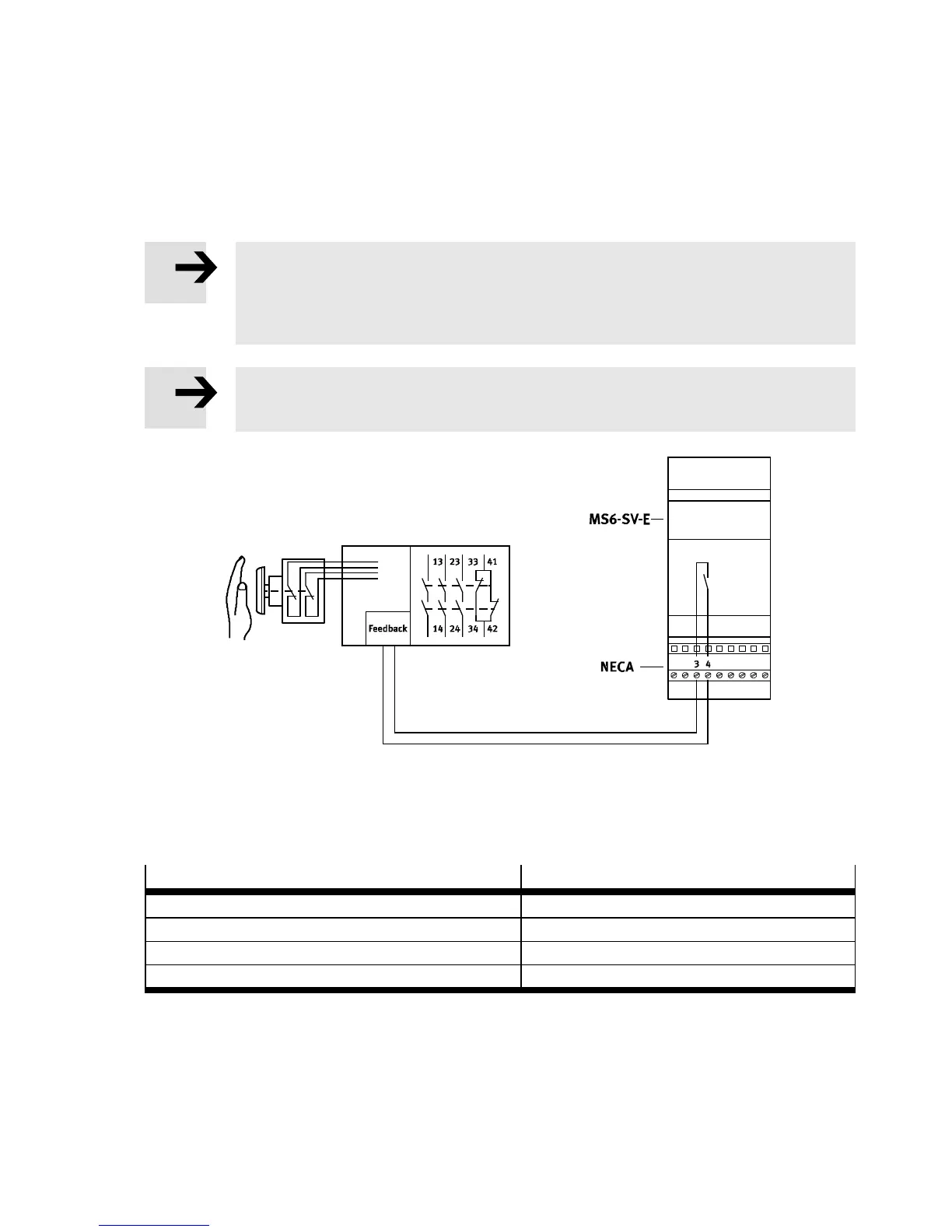

Fig. 10 Feedback signal connection
The diagrams for the switching c haracteristics can be found in the chapter 14 “Technical data” ( with
multi-pin plug socket NECA-S1G9-P9-MP1 Fig. 20; with multi-pin plug socket NECA-
S1G9-P9-MP3/MP5 Fig. 22).
Status of valve
Signal contact
Activat ion for pressurisation through EN1 and EN2 Open
Activation for exhaust through EN1 and EN2 Closed
Malfunction (red L ED flashing) Open
Supply voltage is not connected Open
Tab. 3 Switching statuses of the signal contact
