MS6-SV-...-E-10V24
62 Festo – MS6-SV-...-E-10V24 – 1310b English
6.2 Connect multi-pin plug socket NECA-...
Note
The MS6-SV-E may only be used with the approved NECA -... multi-pin plug sockets
( Fig. 17). Information on terminal connections c an be found in the assembly instruc-
tions enclosed with eac h multi-pin plug socket NECA-....
Note
When mounting the multi-pin plug sockets NECA-… with enclosed seal, pay atte ntion to
the correct orientation of the plug with regard to the v alve. The inspection window of
the multi-pin plug socket NECA-… must point forward.
• Connect the multi-pin plug socket NECA-…
with the correct orientation. The window
points to the silencer.
Make sure that the screws are fastened
tightly in order to guarantee protection class
I P65. The maximum tightening torque is
0.4 ± 0.1 Nm.

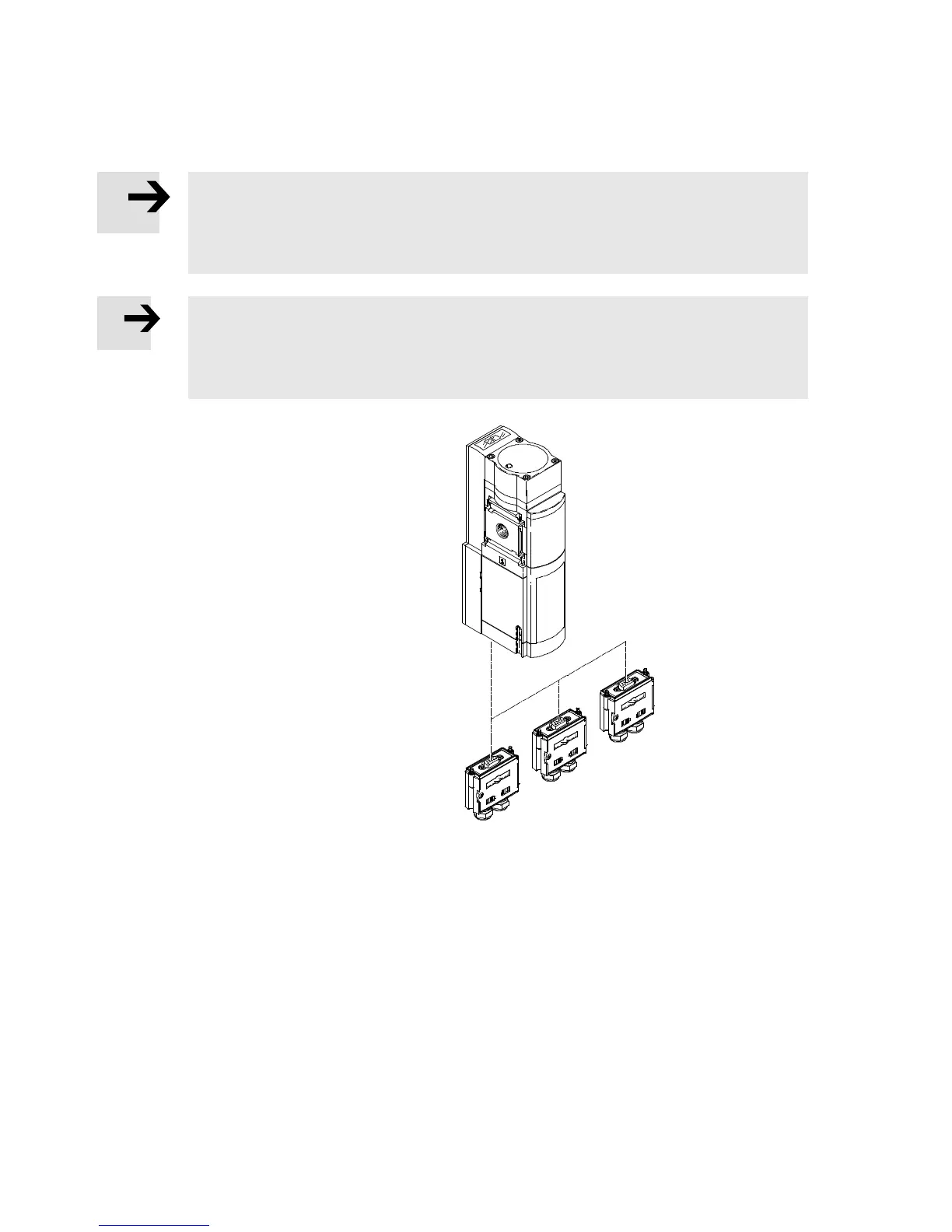

Fig. 17 Electrical c onnection
NEC A-S1G 9-P9-MP3
NEC A-S1G 9-P9-MP1
NEC A-S1G 9-P9-MP5
