4.3.2 MS6-SV-E with multi-pin plug socket NECA-S1G9-P9-MP3
Note
The multi-pin plug socket NECA-S1G9-P9-MP3 is intended for conventional circuitry with
electromechanical safety relays. If problems arise in use with bipolar semiconductor
outputs, use the multi-pin plug socket NECA-S1G9-P9-MP5

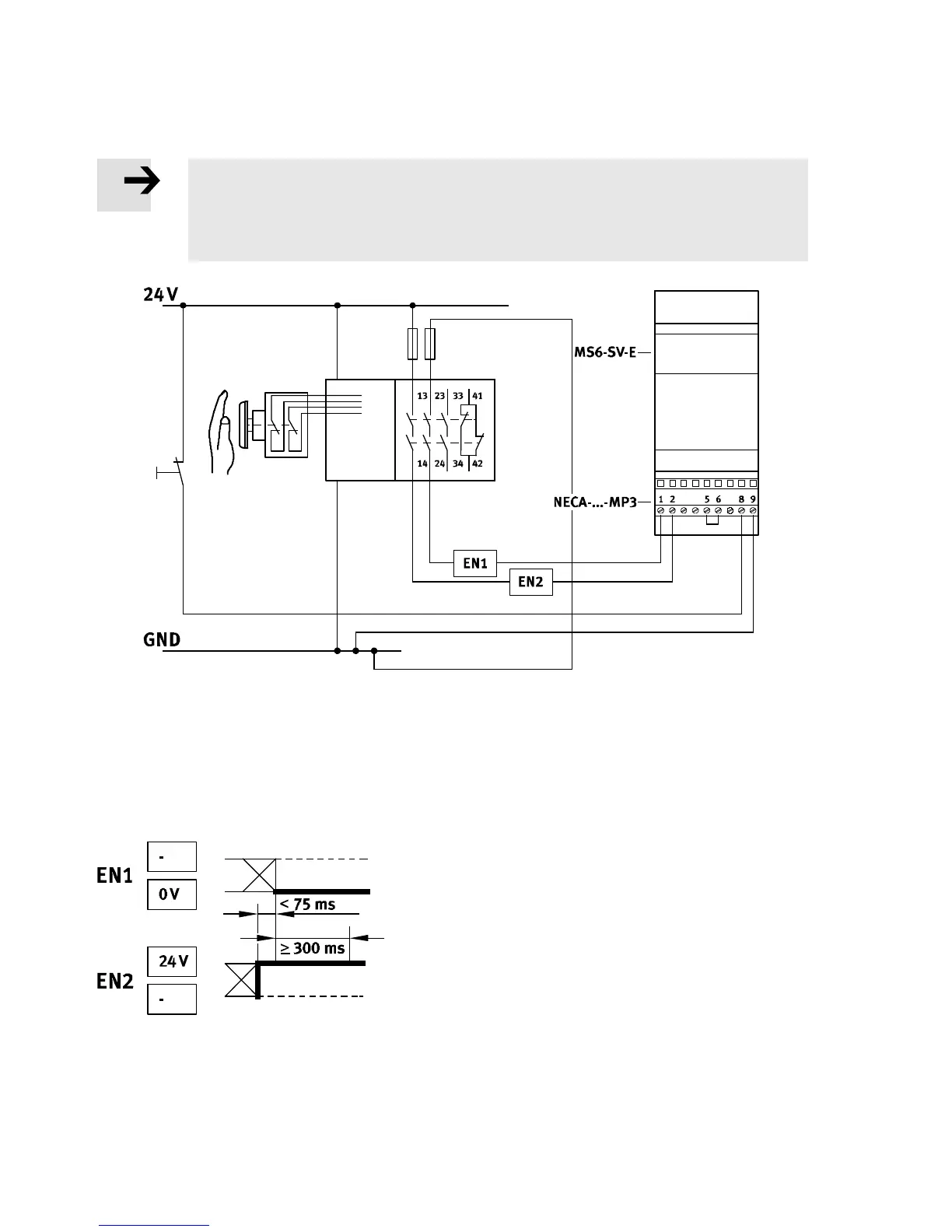

Fig. 6 Connection to NECA-...-MP3
– Static enable signals with opposite potentials
– The time delay of the level change of the enable signals is monitored
– Behaviour on detection of a cross circuit:
• MS6-SV-E in the exhausted status: remains in the safe status and goes into malfunction
• MS6-SV-E in the pressurized status: goes into the safe status and goes into malfunction
Fig. 7 Static enable signals - signal distance
The diagrams for the switching c haracteristics can be found in the chapter 14 “Technical data”
( Fig. 22).
