MS6-SV-...-E-10V24
56 Festo – MS6-SV-...-E-10V24 – 1310b English
4.5 Switch-through pressure/filling time
The flow control screw in t he cover generates a gradual pre ssure build-up of output pressure p2. The
pressure rise can be adjusted by turning the flow control screw. If the output pressure p2 reached has
about 50 % of the output pressure p1, the valve o pens and the maximum flo w rate is enabled.
1
2

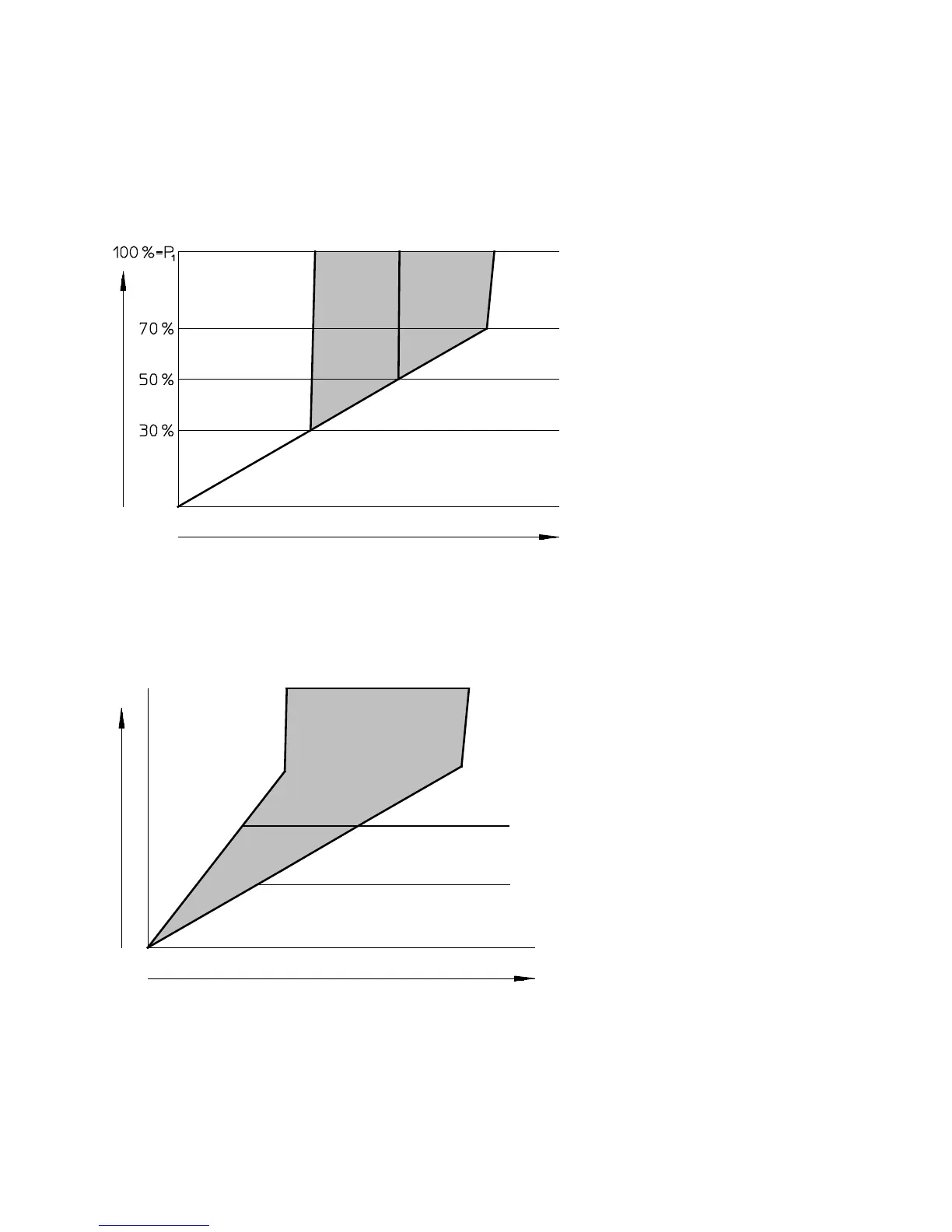

1 Ratioofp2top1[%] 2 Time axis t
Fig. 11 Switch-through pressure tolerance field
Example:
If operating pressure p1 = 4 bar, a switch-through pressure of 1.2 to 2.8 bar is permissible, given the
maximum permitted tolerance of ±20 %.
1
2
3
4
1 Output pressure p2 [bar]
2 Time axis t
3 Flow control screw +
4 Flow control screw -
Fig. 12 Tolerance field filling time
