MS6-SV-...-E-10V24
Festo – MS6-SV-...-E-10V24 – 1310b English 57
5 Mechanical/pneumatic installation
5.1 Mechanical installation
Note
In order to ensure electromagnetic compatibility in accordance with the EMC directive,
observe the following:
• Observe wall distance of 32 mm ( e.g. with the mounting bracket MS6-WPB).
• Do not install a cable between wall and MS6-SV-E.
Note
Loss of the safety function
If the minimum distance of 15 mm between the silencer and base is not maintained, loss
of the safety function can result.
• Observe distance of 15 mm below the silencer ( Fig. 13). The free space ensures
troublefreeventing.
Informatio n about mounting of the module connector, sub-base and mounting bracket
can be found in the operating instructions enclosed with the relevant acc essories.
• Place the MS6-SV-E as close as possible to the
location of use.
• The mounting po sitio n is any desired.

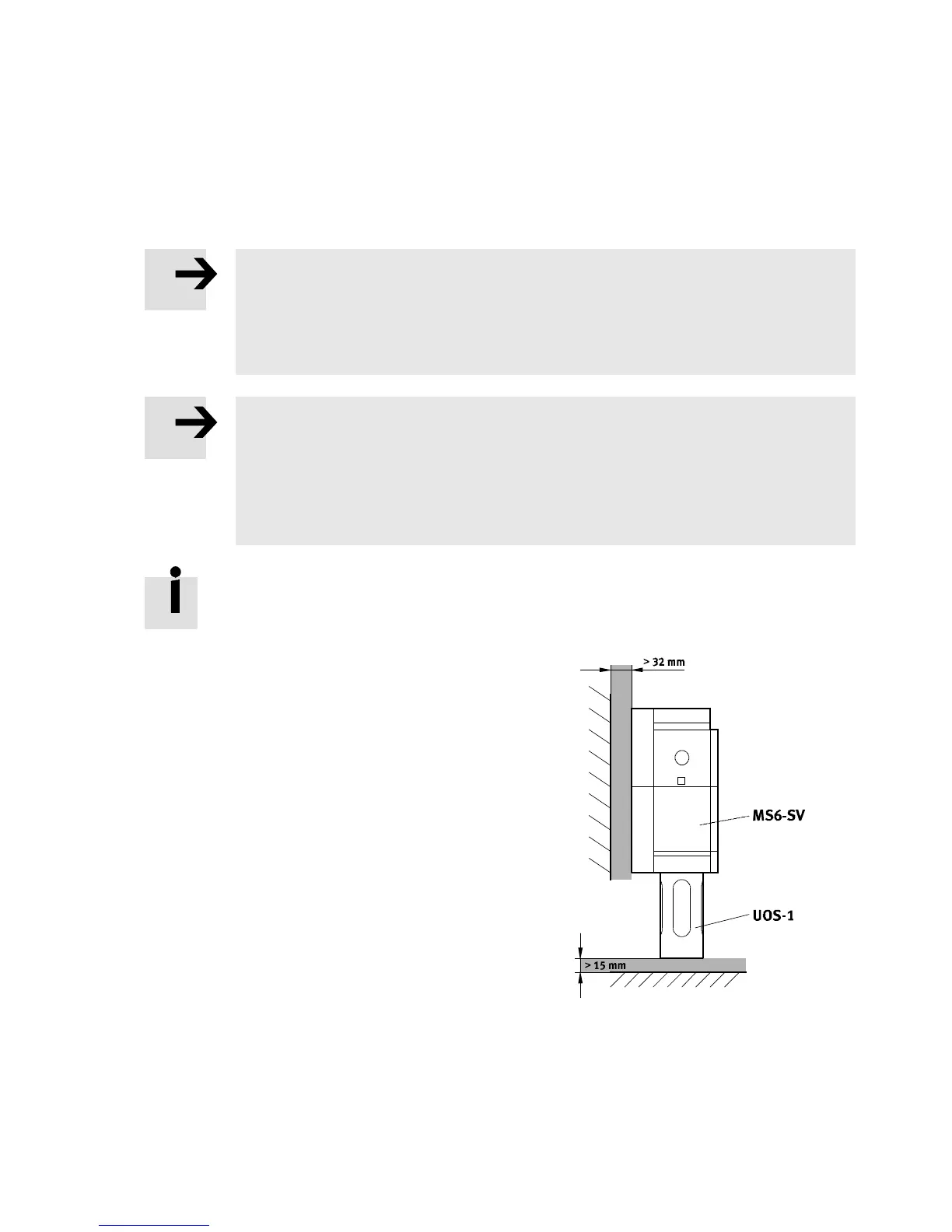

Fig. 13 Installation
