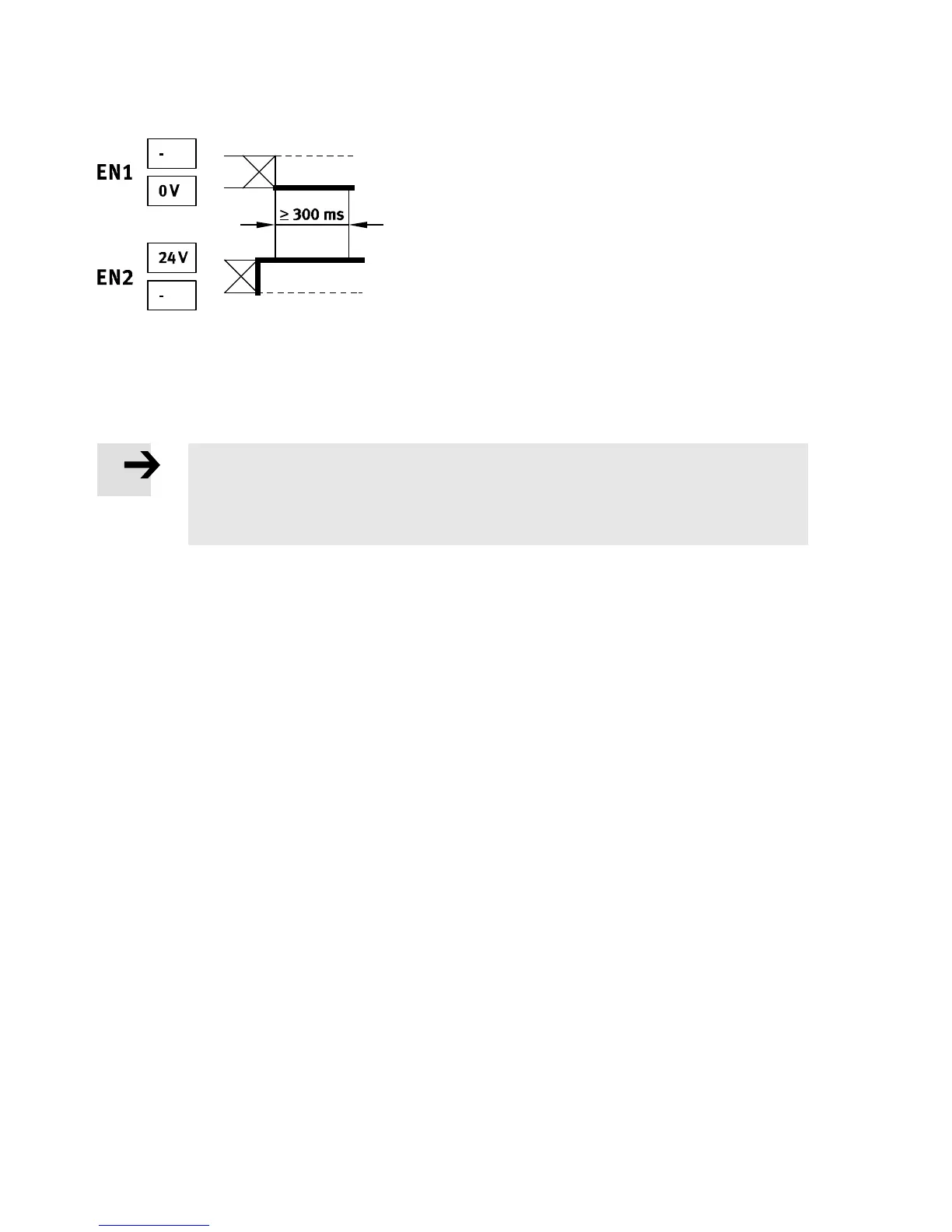

Fig. 9 Static enable signals - signal distance
The diagrams for the switching c haracteristics can be found in the chapter 14 “Technical data”
( Fig. 22).
Switching statuses
Note
The time delay t2 between E N1 and EN2 must be automatically determined. The dura-
tion of the delay is not ev aluated. The multi-pin plug socket NECA-MP5 does not allow
any cross-circuit detection through the MS6-SV-E.
