FiberHome AN5506-04 Series User Manual

4
Web Configuration Guide

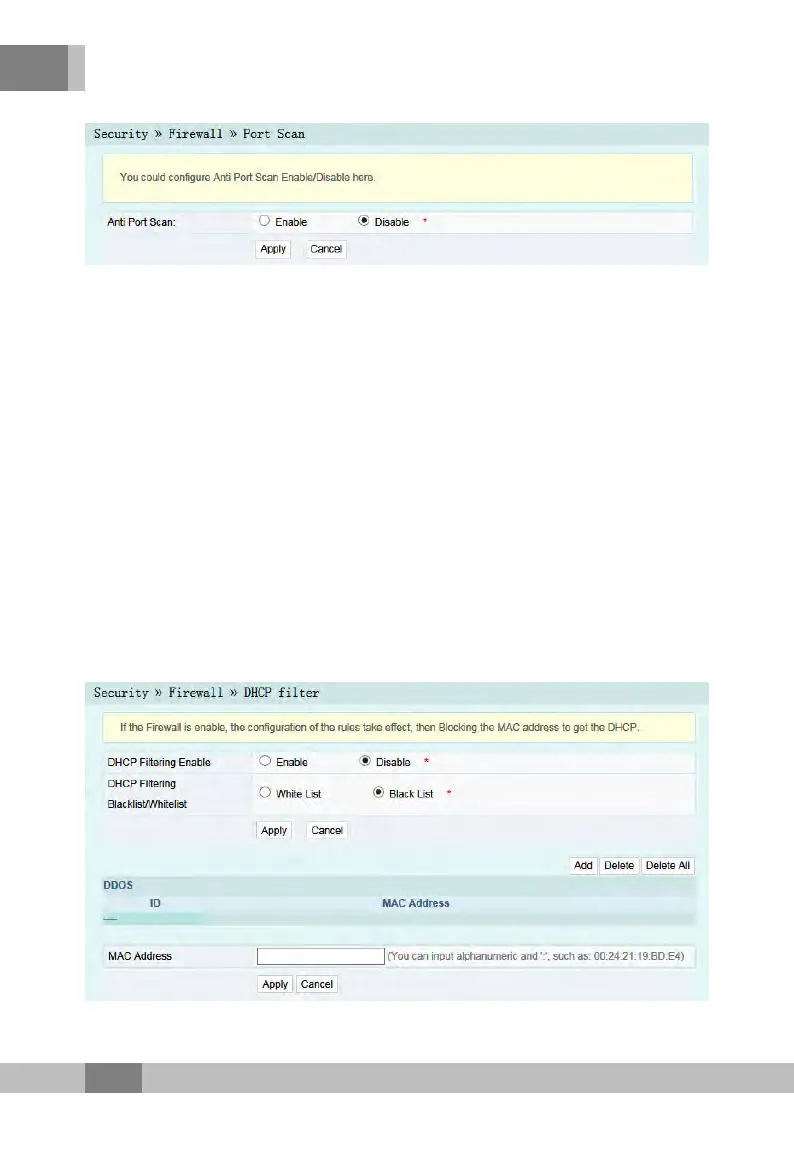

Figure
4.24 Anti-port Scan
2
. Select to Enable or Disable the anti-port scan function as
required.
3. Click Apply to save and apply the configuration.
4.4.1.6
DHCP Filtering
Forbid
or allow the user device configured with the MAC address to
obtain an IP address in the DHCP mode to prevent DOS attacks.
After the firewall is enabled, the pre-set rules will take effect.
1. Select Security in the navigation bar and select Firewall→
DHCP filter in the left link bar, and then click Add to open the
anti-DOS attack configuration tab, as shown in Figure 4.25.
Figure
4.25 DHCP Filtering
98

FiberHome AN5506-04 Series Specifications

General

Model	AN5506-04 Series
Category	Network Hardware
Type	GPON ONT
Power Supply	12V DC, 1A
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Ports	4 GE ports, 2 POTS ports
WLAN	802.11b/g/n
