FiberHome AN5506-04 Series User Manual

4
Web Configuration Guide
4.4.1.2
IP Filtering
Allow
or forbid the incoming or outgoing flow of the IP packets that
comply with the filtering conditions. After the firewall is enabled, the
pre-set rules will take effect.
1. Select Security in the navigation bar and select Firewall→IP
Filtering in the left link bar. Click Add to open the filtering rule
list configuration tab, as shown in Figure 4.21.

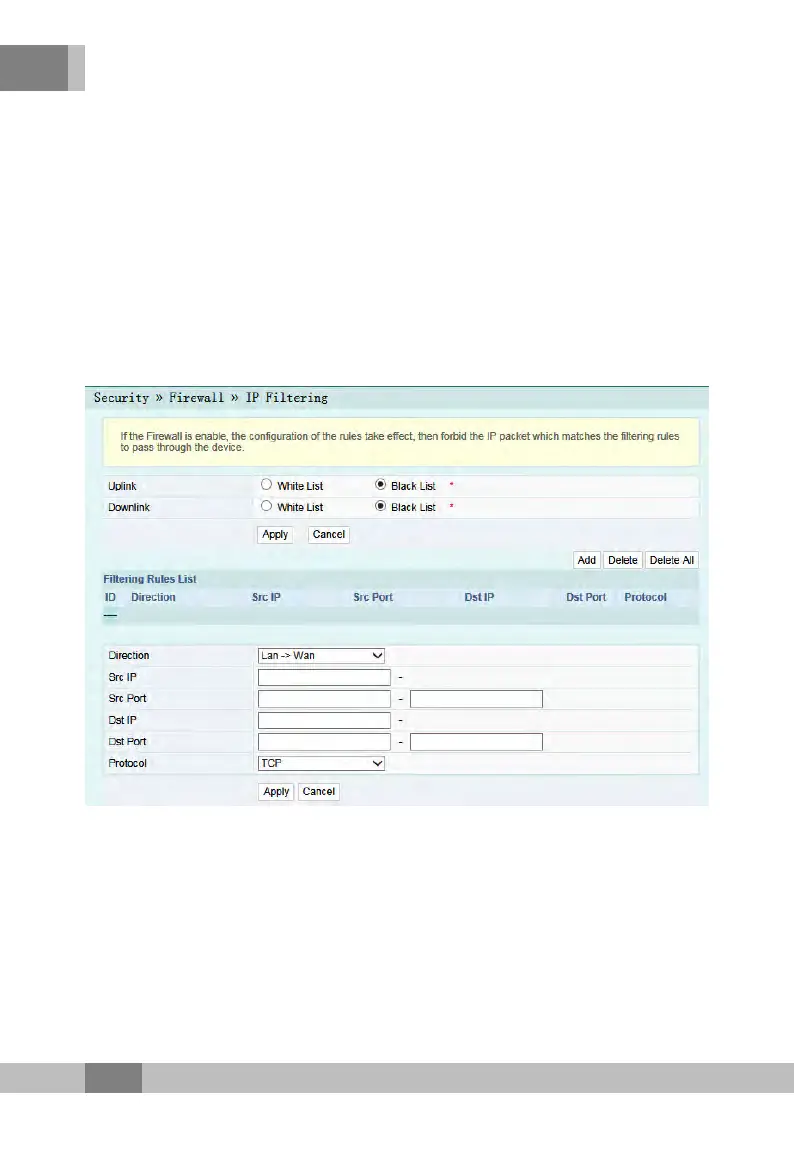

Figure
4.21 IP Filtering
2
. Configure the parameters relevant to filtering as required. Table
4.11 describes the parameters.
3. Click Apply to save and apply the configuration.
92

FiberHome AN5506-04 Series Specifications

General

Model	AN5506-04 Series
Category	Network Hardware
Type	GPON ONT
Power Supply	12V DC, 1A
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Ports	4 GE ports, 2 POTS ports
WLAN	802.11b/g/n
