FiberHome AN5506-04 Series User Manual

4
Web Configuration Guide
4.5.3
Port Forwarding
The
port forwarding can create the mapping relation between the
WAN port IP address / common port number and the LAN server IP
address / private port number. In this way, all the accesses to a
certain service port at this WAN port will be re-directed to the
corresponding port of the server in the designated LAN.
1. Select Application in the navigation bar and select Port
Forwarding in the left link bar. Click Add to open the port
forwarding configuration tab, as shown in Figure 4.38.

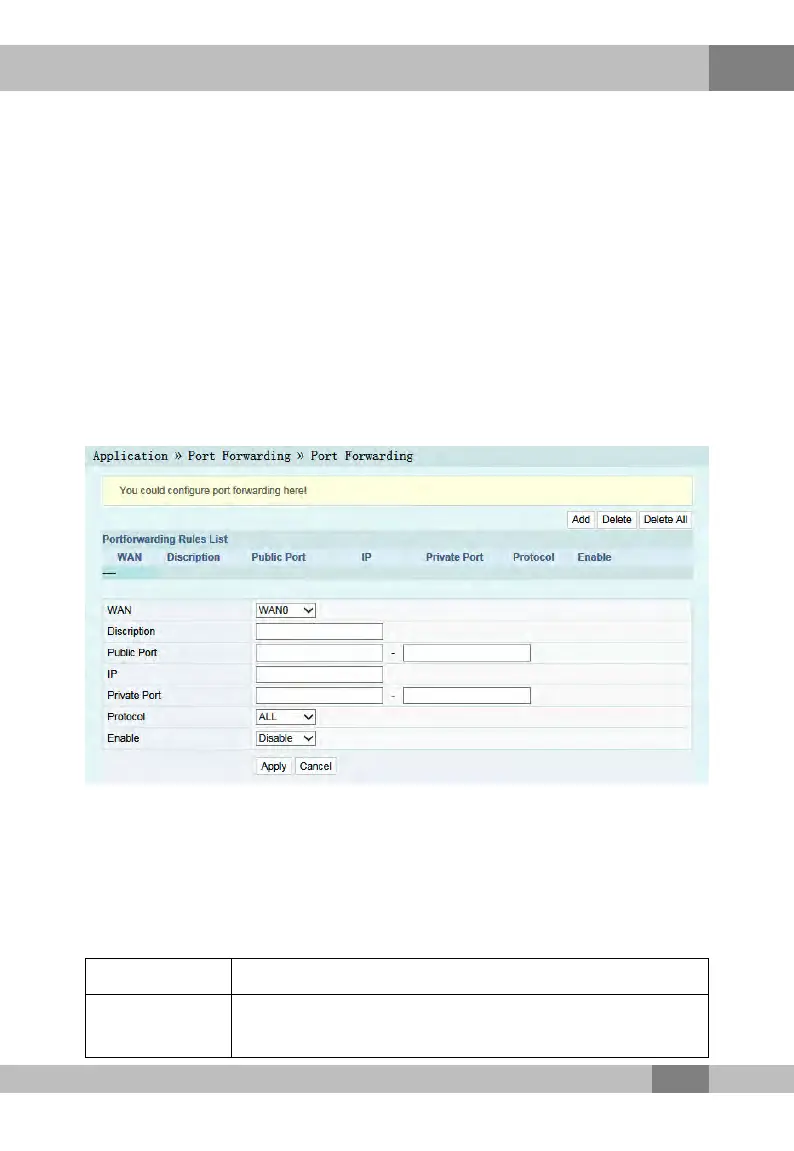

Figure
4.38 Port Forwarding
2
. Configure parameters relevant to port forwarding according to
the requirement. Table 4.20 describes the parameters.
3. Click Apply to apply and save the configuration.
T
able 4.20 Parameters for Port Forwarding
Item Description
WAN
The corresponding WAN connection bound with the port
forwarding rule.
113

FiberHome AN5506-04 Series Specifications

General

Model	AN5506-04 Series
Category	Network Hardware
Type	GPON ONT
Power Supply	12V DC, 1A
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Ports	4 GE ports, 2 POTS ports
WLAN	802.11b/g/n
