FiberHome AN5506-04 Series User Manual

4
Web Configuration Guide
Figure

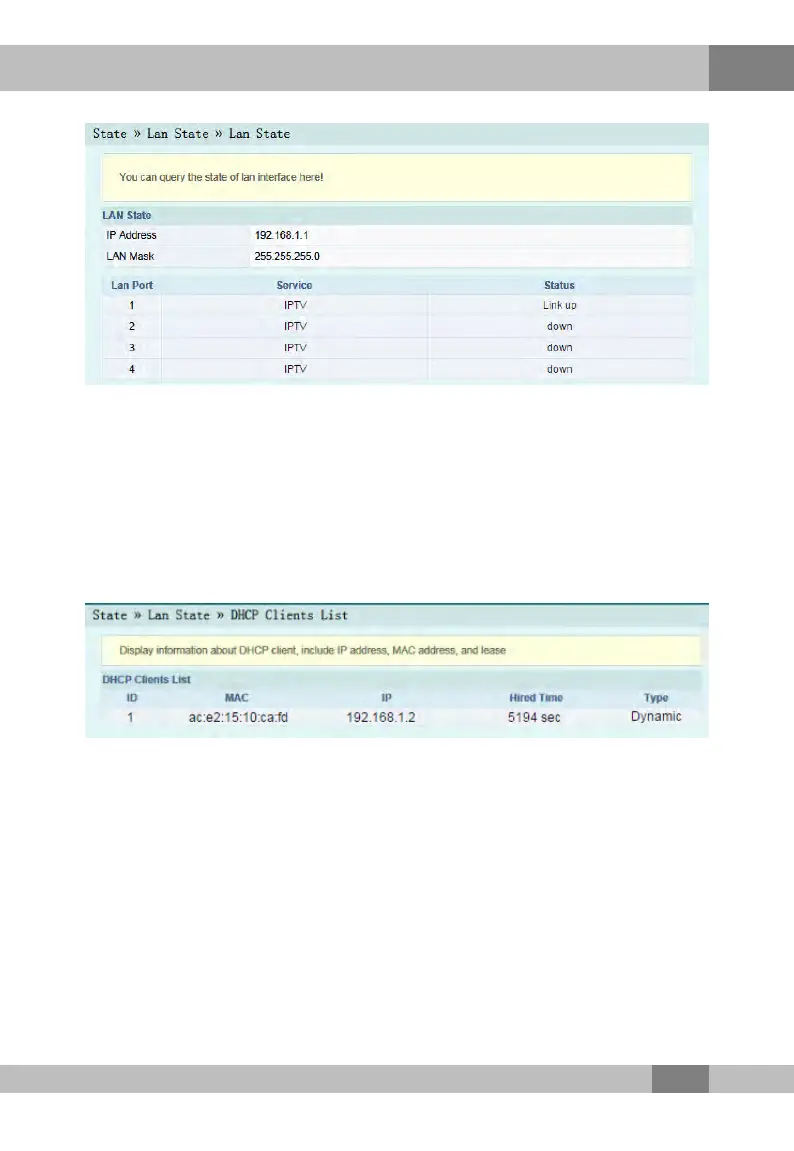

4.4 LAN Side Status
DHCP
User List
Select State in the navigation bar and select Lan State→DHCP
Clients List in the left link bar to view the information about the
DHCP client end such as the IP address, MAC address and hired
time. See Figure 4.5.
Figure
4.5 DHCP User List
4.2.4
Optical Power Status
Select State in
the navigation bar and select Optical Power in the
left link bar to view the optical module information such as the Tx
optical power, Rx optical power and working temperature. See
Figure 4.6.
69

FiberHome AN5506-04 Series Specifications

General

Model	AN5506-04 Series
Category	Network Hardware
Type	GPON ONT
Power Supply	12V DC, 1A
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Ports	4 GE ports, 2 POTS ports
WLAN	802.11b/g/n
