FiberHome AN5506-04 Series User Manual

4
Web Configuration Guide
1. Select Network in the navigation bar, and select LAN Settings
→CATV RF Power in the left link bar to open the RF output
level adjustment tab, as shown in Figure 4.14.

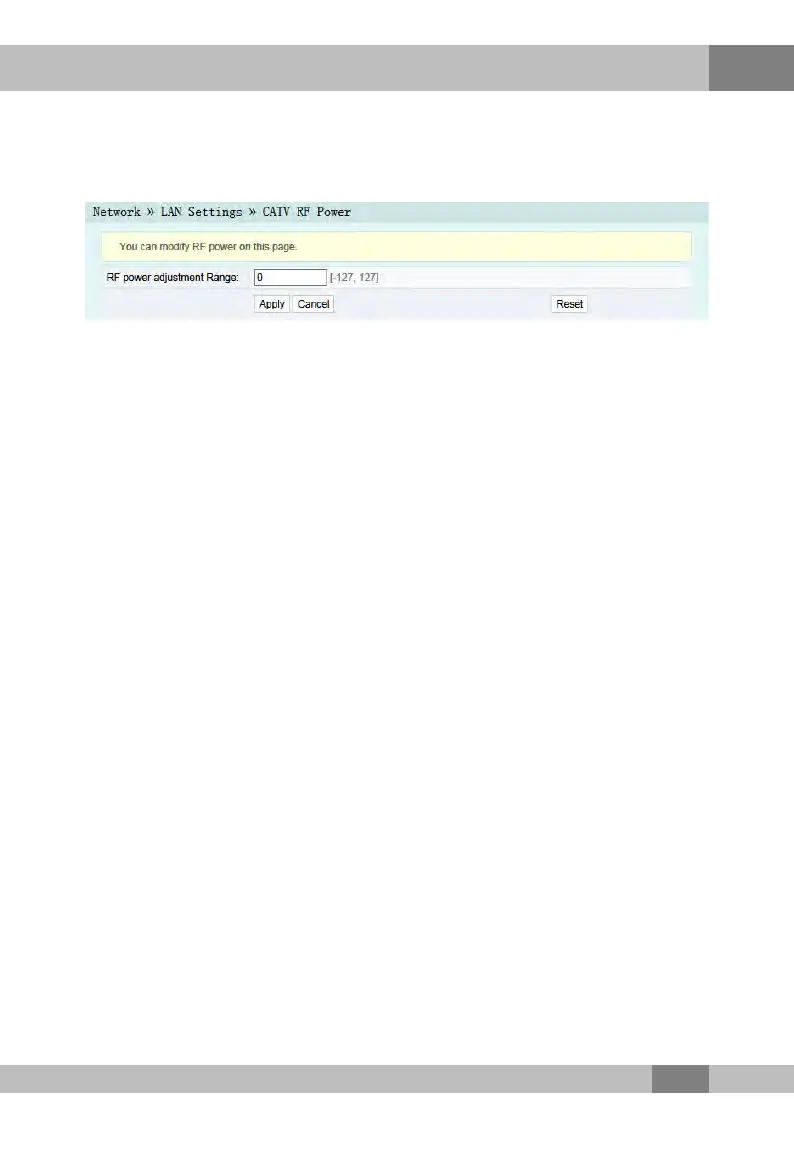

Figure
4.14 RF Output Level Adjustment
2
. Enter the RF output level adjustment range. Click Apply to
save and apply the configuration.
3. (Optional) Click Reset to restore to the default RF output level
adjustment range.
4.3.3
Broadband Settings
Select
different WAN connections for different network environment,
or configure corresponding parameters for the selected WAN
connection.
1. Select Network in the navigation bar and select BroadBand
Settings in the left link bar to open the Broadband setting tab,
as shown in Figure 4.15.
79

FiberHome AN5506-04 Series Specifications

General

Model	AN5506-04 Series
Category	Network Hardware
Type	GPON ONT
Power Supply	12V DC, 1A
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Ports	4 GE ports, 2 POTS ports
WLAN	802.11b/g/n
