Filtec FT-50 - Adjusting the Inspection Head Height

Chapter 2: Operating Your FT-50
Industrial Dynamics Company, Ltd. Document 40272-0700 2-5
Adjusting the Inspection Head Height
You must adjust the inspection head height to align the inspection beam to
the container’s target fill level. This will require you to make several
mechanical adjustments.
1.
Approximately 5 seconds after you select the container type, a
message will appear indicating the head height setting to which you
must adjust the FT-50.

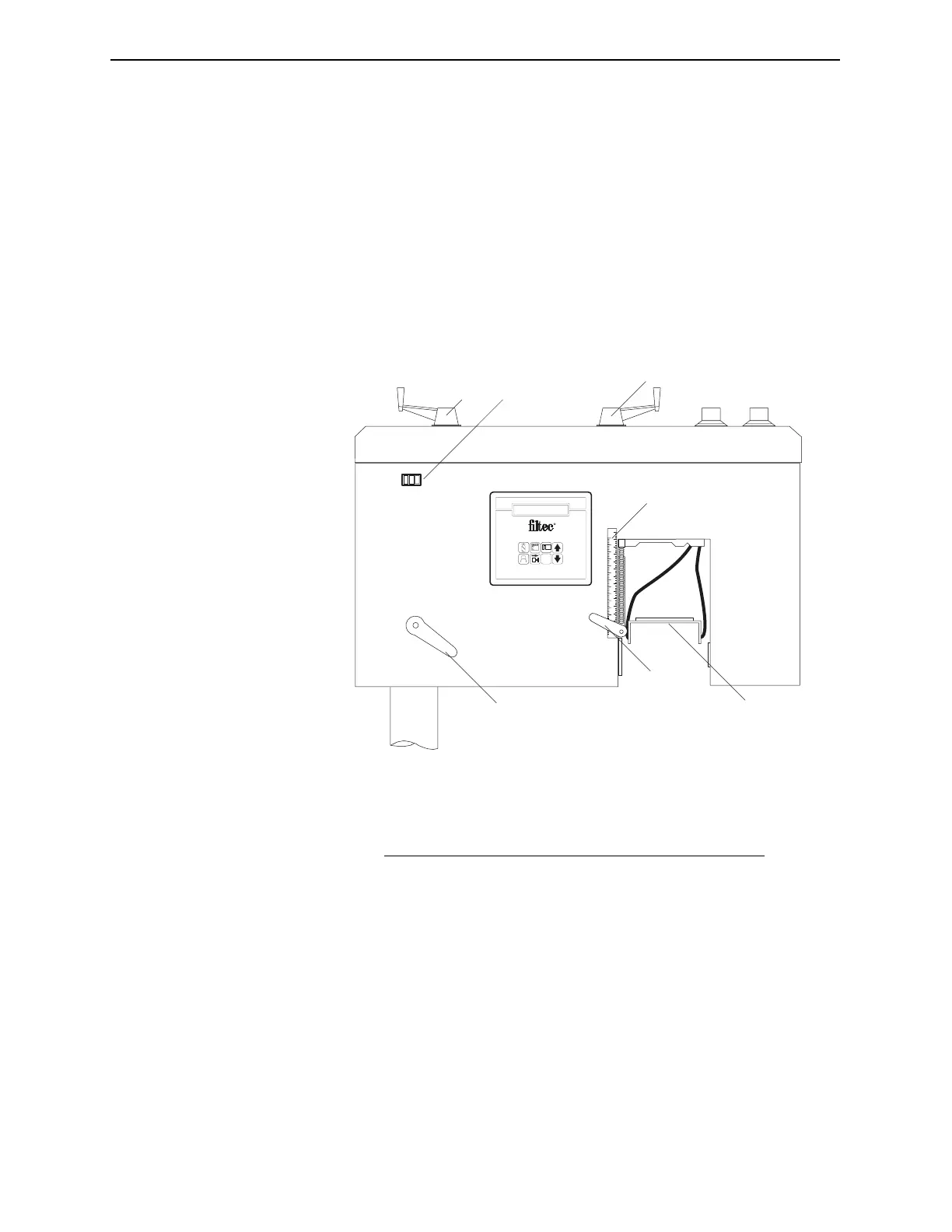

Figure 2-3.
The FT-50 adjustment mechanisms.
?
6
4
3
5
1
2
1
3
5
6 6 6
2
6
7
4
No. Description
1 Head Height Adjustment Crank
2 Head Height Counter
3 Centerline Trigger Bracket Height Adjustment Crank
4 Centerline Trigger Height Adjustment Scale
5 Centerline Trigger Bracket
6 Centerline Trigger Bracket Height Lock
7 Head Height Lock
