Chapter 2: Operating Your FT-50
Industrial Dynamics Company, Ltd. Document 40272-0700 2-21
Aligning the Down Can Sensor

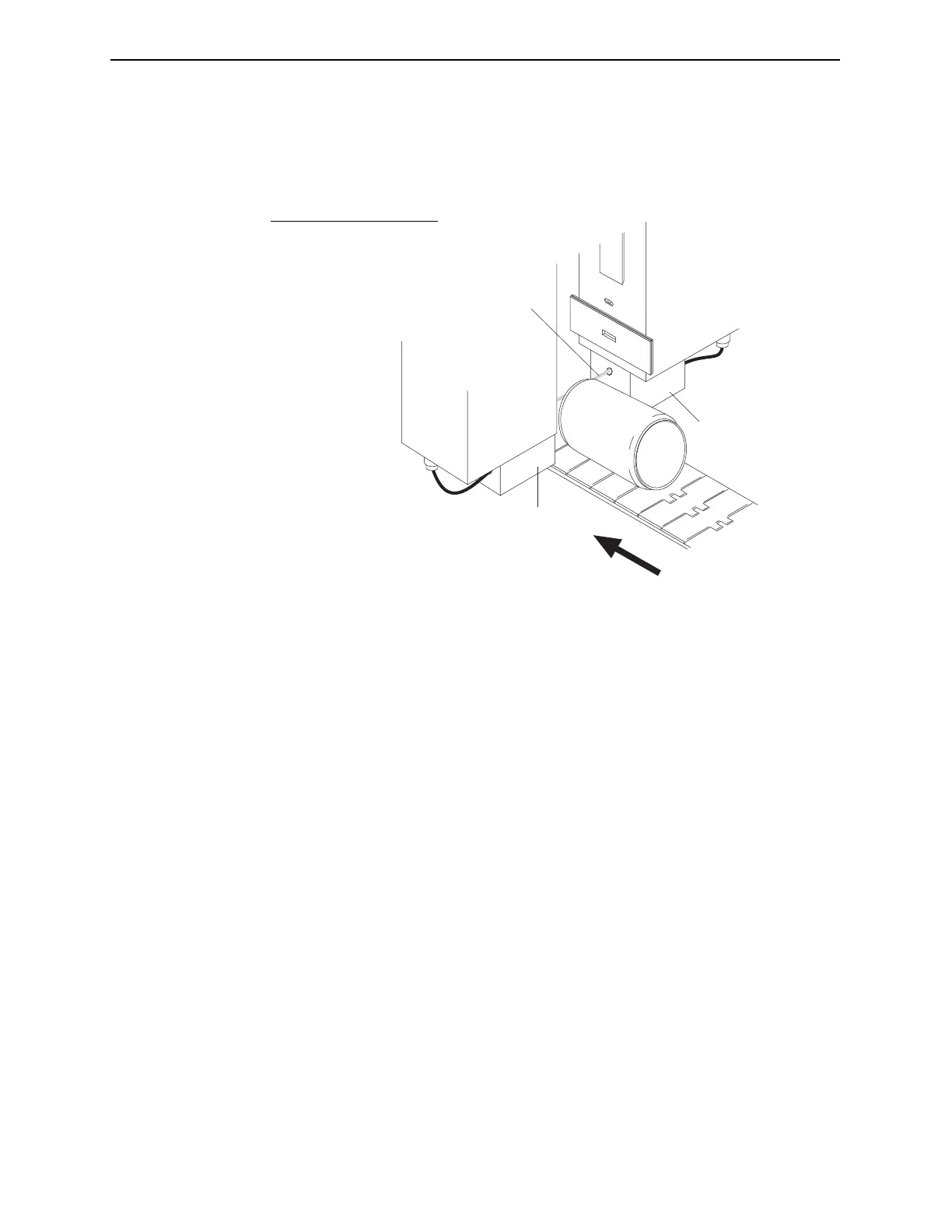

Figure 2-10.
Aligning the down can sensor.
The down can sensor is mounted on separate brackets attached directly to
the bottom of the inspection head, therefore before you adjust the down
can sensor be certain you have adjusted the Inspection Head height first.
For more information see “Adjusting the Inspection Head Height” on
page 2-5.
1.
If your FT-50 is not equipped with an automatic safety shutter, you
must close the manual shutter before you proceed. For more infor-
mation see “The Safety Shutter” on page 2-3.
2.
The mounting brackets themselves are not adjustable, however the
sensor height can be adjusted by positioning it in the proper mounting
hole within the block.
The proper mounting hole positions the beam to intersect the can
nearest to the top of the can while the can is lying on its side.
3.
If you closed the manual safety shutter, open it before resuming
operation. For more information see “The Safety Shutter” on
page 2-3.
4
1
3
2
No. Description
1Sensor beam
2 Sensor Emitter
3 Sensor Receiver
4 Container Travel
