Chapter 2: Operating Your FT-50
Industrial Dynamics Company, Ltd. Document 40272-0700 2-17

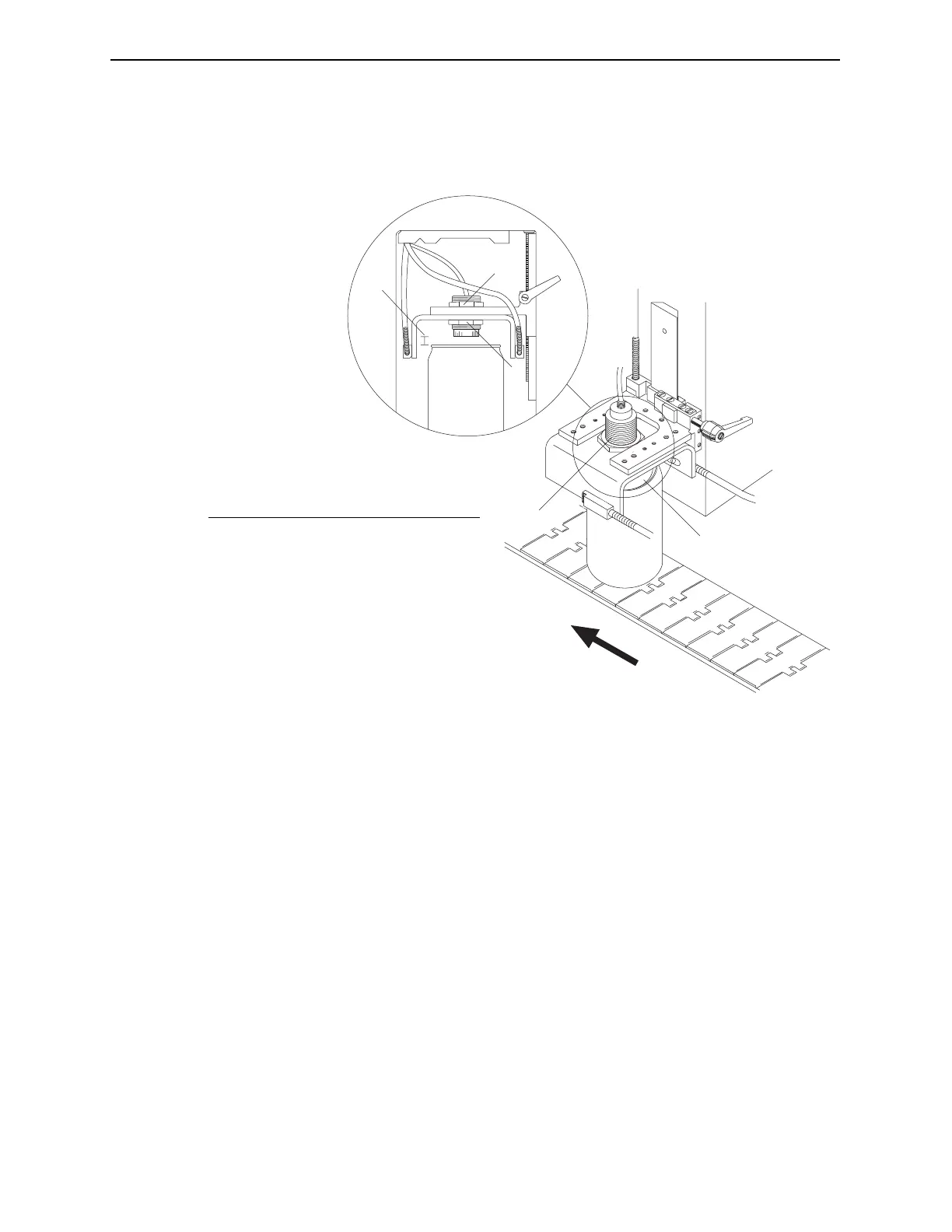

Aligning the Missing Lid Sensor
Figure 2-8.
Aligning the missing lid sensor height.
The missing lid sensor is mounted on the centerline trigger bracket,
therefore before you align missing lid sensor be certain the centerline
trigger bracket is aligned properly. For more information see “Adjusting
the Centerline Trigger Bracket Height” on page 2-7.
1.
If your FT-50 is not equipped with an automatic safety shutter, you
must close the manual shutter before you proceed. For more infor-
mation see “The Safety Shutter” on page 2-3.
2.
Loosen the bottom jam nut on the missing lid sensor.
3.
Center a properly filled and sealed production container in the
inspection tunnel so that it is directly under the missing lid sensor.
2
3
1
No. Description
1 Missing Lid Sensor
2 Container Lid
3 Container Travel
4 Distance between Lid and Sensor
5 Upper Locking Nut
6 Lower Locking Nut
