FT-50 Fill Level Inspector Operation Guide
2-22 Industrial Dynamics Company, Ltd. Document 40272-0700
Aligning the Inspection Trigger (Cans)

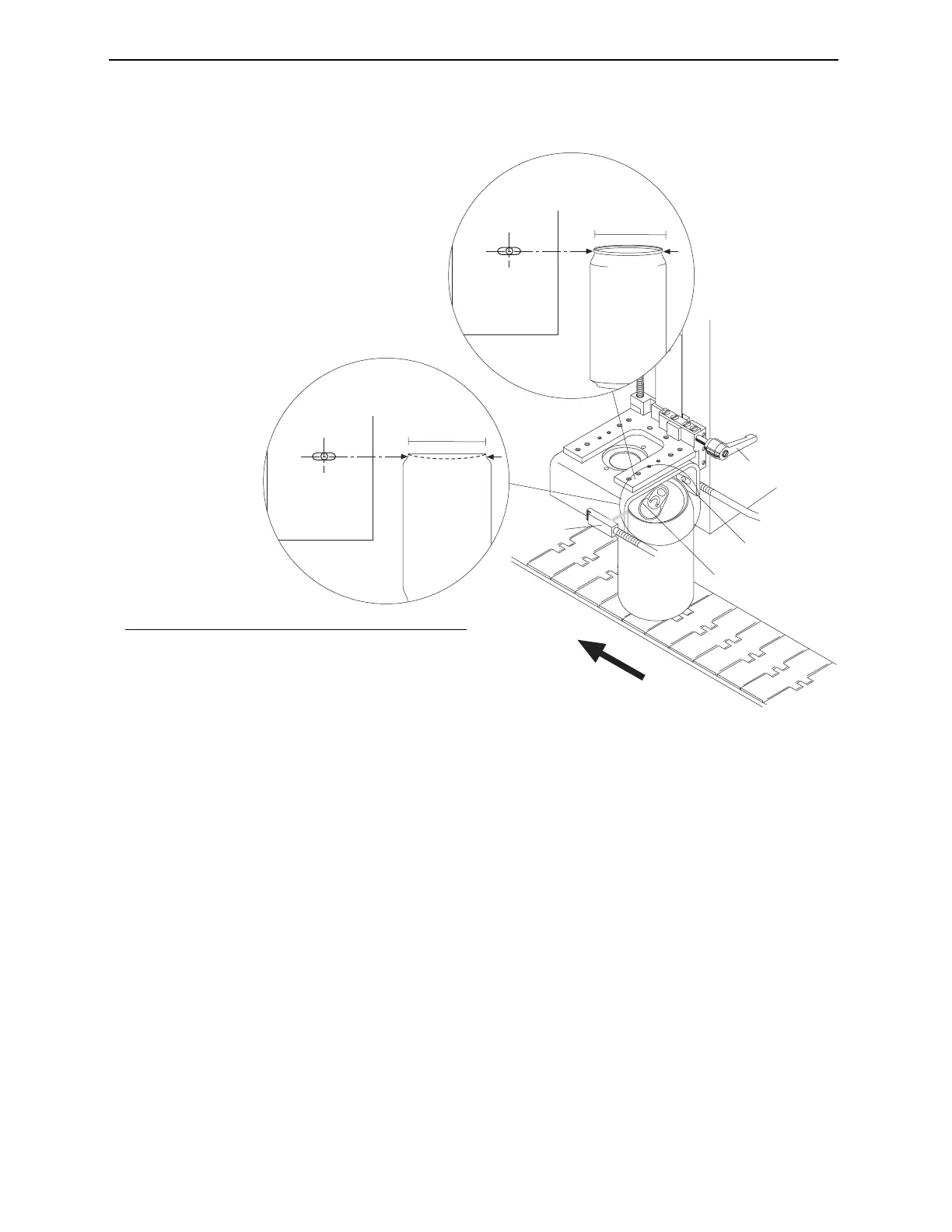

Figure 2-11.
Aligning the inspection trigger beam (cans).
You must align the inspection trigger height so that the trigger beam
contacts the container at the widest part of the lid.
1.
If your FT-50 is not equipped with an automatic safety shutter, you
must close the manual shutter before you proceed. For more infor-
mation see “The Safety Shutter” on page 2-3.
2.
Loosen the centerline trigger bracket height lock, and using the
centerline trigger bracket height crank, raise the bracket all the way.
1
3
5
4
7
6
8
2
7
6
9
No. Description
1 Trigger Height Lock
2 Trigger Beam Emitter
3 Trigger Beam Centerline
4 Trigger Beam Receiver
5 Container Travel
6 Trigger Horizontal Centerline
7 Trigger Vertical Centerline
8 Width of Container at Trigger Point (top up)
9 Width of Container at Trigger Point (bottom up)
