Chapter 2: Operating Your FT-50
Industrial Dynamics Company, Ltd. Document 40272-0700 2-9
Aligning the Missing Cap Sensor

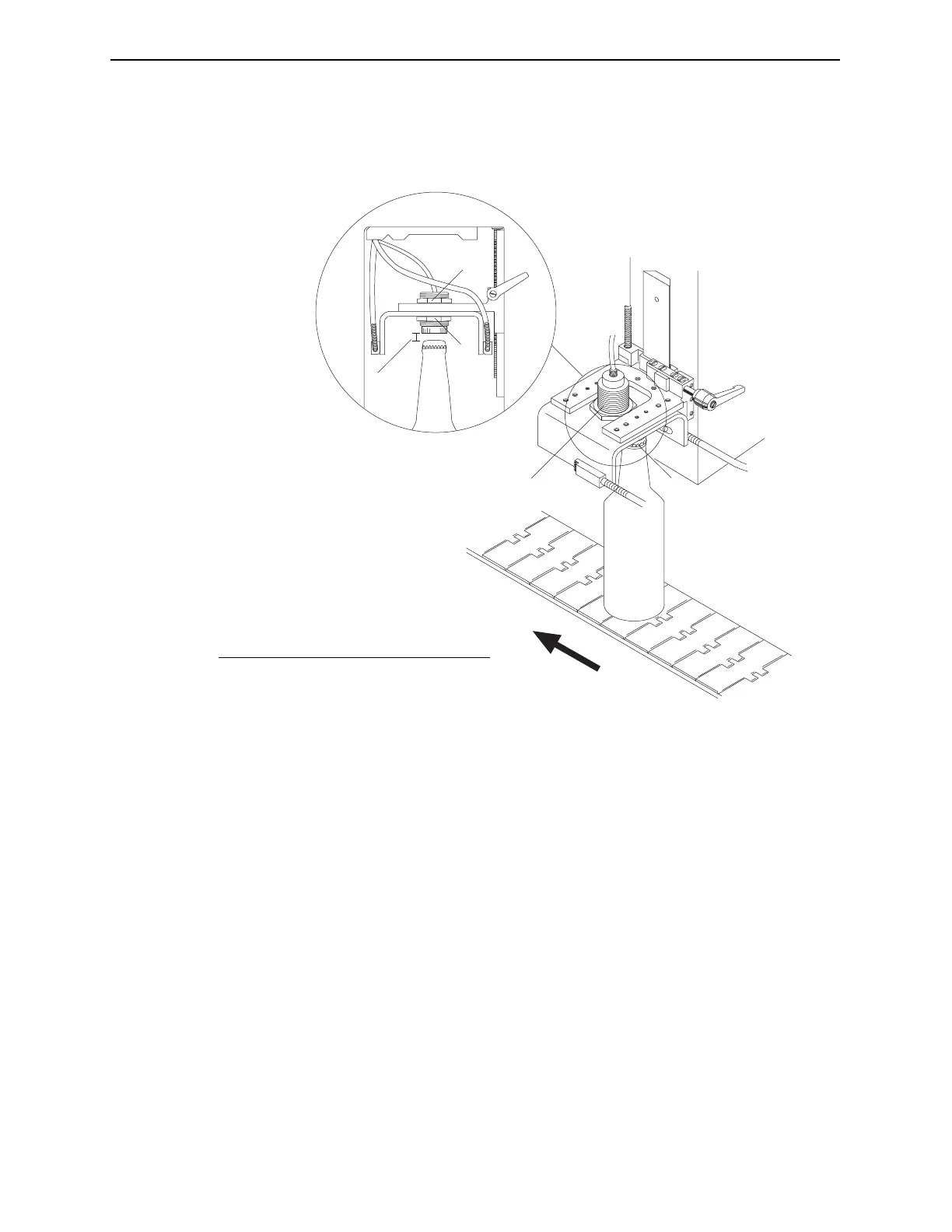

Figure 2-4.
Aligning the missing cap sensor.
The missing cap sensor is mounted on the centerline trigger bracket,
therefore before you align missing cap sensor be certain the centerline
trigger bracket is aligned properly. For more information see “Adjusting
the Centerline Trigger Bracket Height” on page 2-7.
1.
If your FT-50 is not equipped with an automatic safety shutter, you
must close the manual shutter before you proceed. For more infor-
mation see “The Safety Shutter” on page 2-3.
2.
Loosen the bottom jam nut on the missing cap sensor.
2
3
1
No. Description
1 Missing Cap Sensor
2 Container Cap
3 Container Travel
4 Distance between Cap and Sensor
5 Upper Locking Nut
6 Lower Locking Nut
