Correlations Software Zones

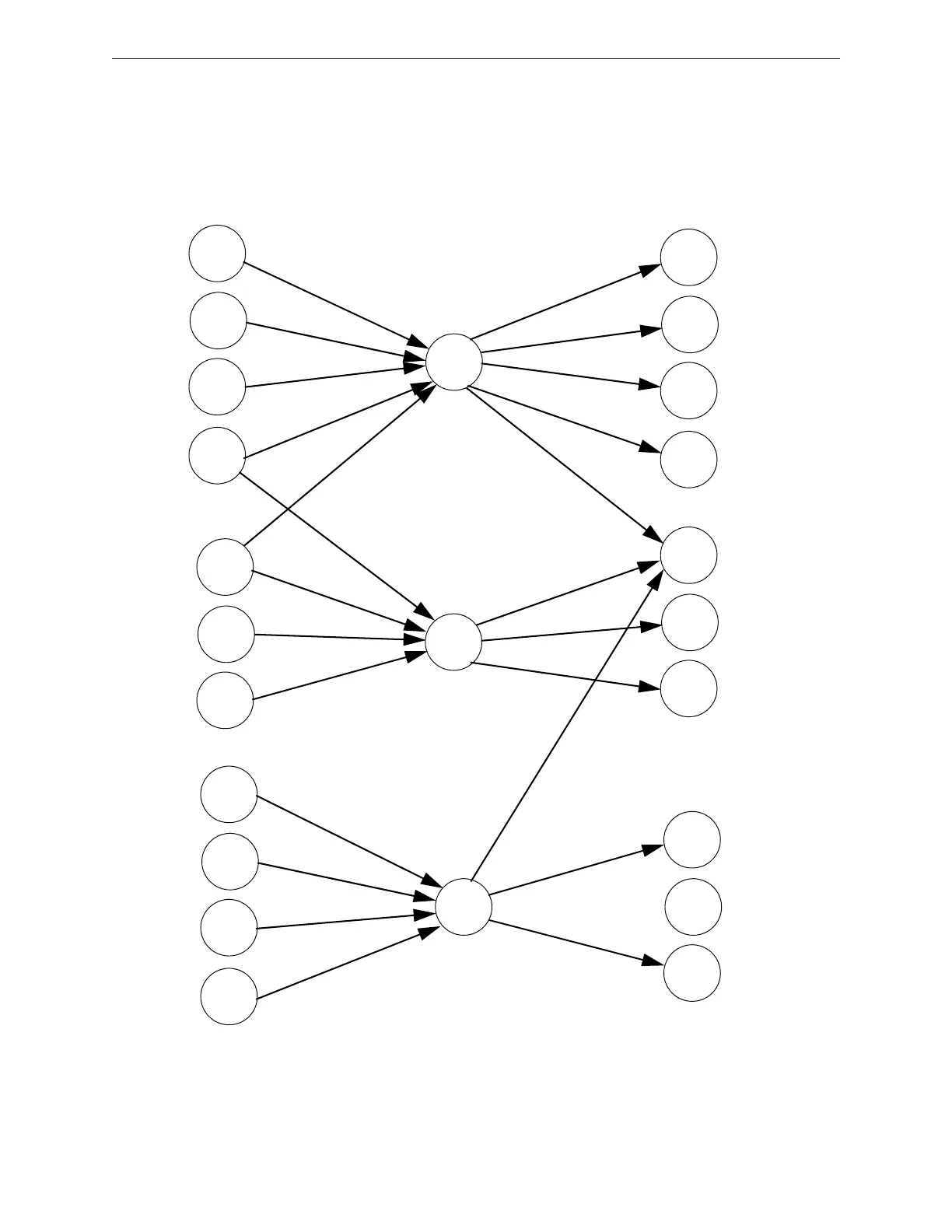

Correlation of Input and Output Zones
The zone correlations which are shown graphically above are also presented in Table A.1 on page
196 and Table A.2 on page 197.
Input Devices Zones Output Devices
ZONE
01
ZONE
02
ZONE
03
SD355
01
SD355
02
MMF-300
01
MMF-302
02
MMF-302
03
CP355
03
CP300
04
SD355
05
SD355
06
SD355
07
MMF-302
04
CMF-300
06
CMF-300
05
CMF-300
07
CMF-300
09
CMF-300
08
CMF-300
10
CMF-300
11
CMF-300
12
CMF-300
13
