MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 37
Accessories Product Description

ANN-LED Board Layout and Connection to FACP

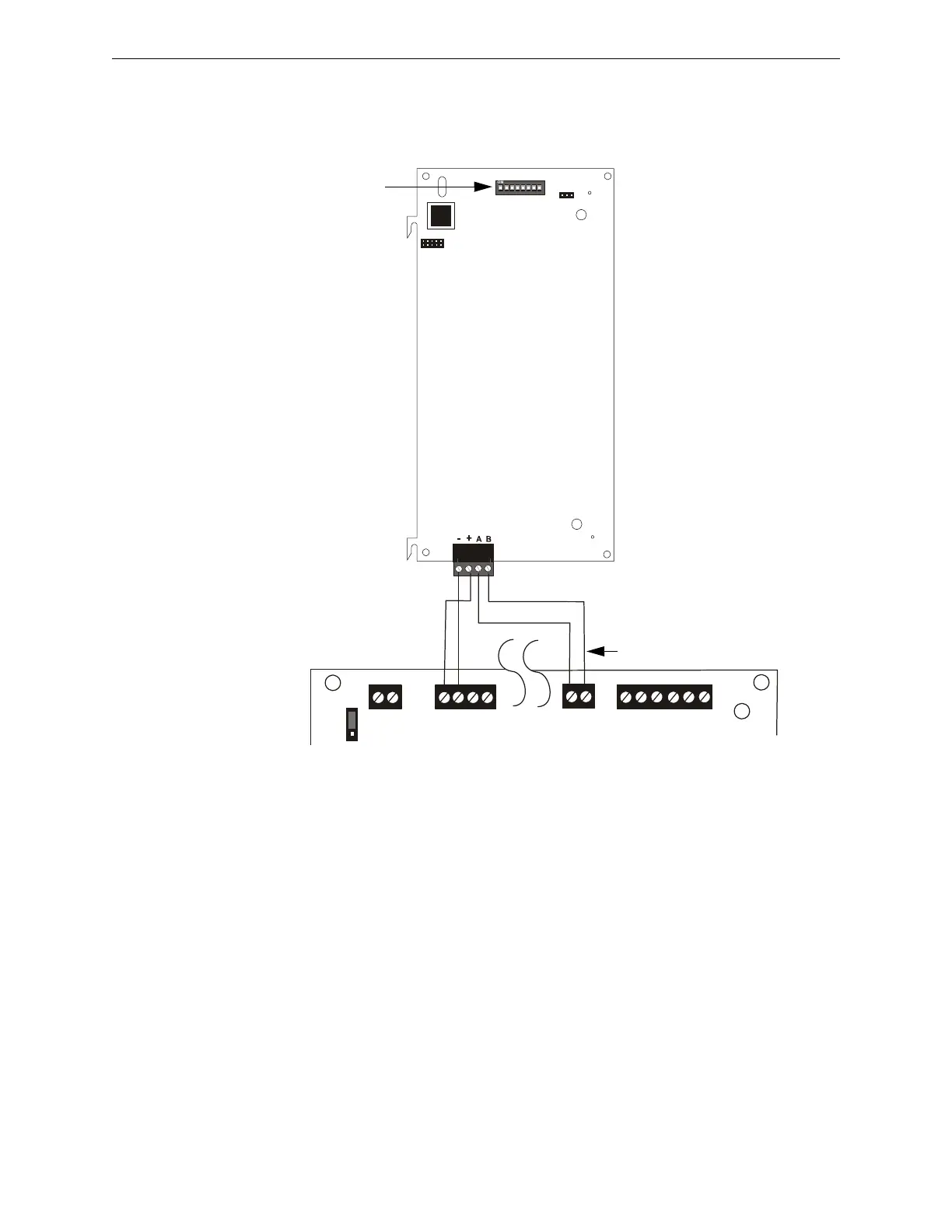

Figure 1.13 illustrates the ANN-LED board showing locations of screw terminals for connection to
the FACP and the DIP switches for selecting the ANN-BUS ID number.
ANN-RLY Annunciator Module
The ANN-RLY relay module provides 10 programmable Form-C relays when used with a compat-
ible FACP.
 Specifications
• Operating Voltage: 24 VDC
• Max. Current:
 Alarm: 75 mA
 Standby: 15 mA
• Operating Temperature: 32
o
F to 120
o
F (0
o
C to 49
o
C)
• For indoor use in a dry location only
TB1
J1
SW1
JP2
ANN-BUS
1 2 3 4 5 6 7 8
B+ A+ B- A- A B
ANN
ACS
SHIELD
SLC
SLC
SLC
SLC
TB9
TB10
A B
+ -
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
TB1
JP7
1
2
3
+ -
REMOTE PWR
SUPPLY SYNC
+ -
TB2
Figure 1.13 ANN-LED Board Layout and Connection to FACP
MS-9200UDLS
ANN-LED
Primary ANN-BUS
+24 VDC -24 VDC
ANN-BUS and power wiring are
supervised and power-limited
92udlsctoled.wmf
ANN-BUS (ID#)
Address DIP switch
