Installation Power
2.3.2 Battery Power
The batteries must be sealed lead acid type. Before con-
necting the batteries to the FACP, make certain that the
interconnect cable between the batteries is not
connected.
Do not connect the interconnect cable until the system is
completely installed. Observe polarity when connecting
the batteries. Connect the battery cable to J9 on the main
circuit board. Refer to “Power Supply Calculations” on
page 189, for calculation of the correct battery rating.
2.3.3 Special Application DC Power Output Connection
All Special Application DC power outputs are power-limited (refer to“UL Power-limited Wiring
Requirements” on page 54).
-
- +
+
Interconnect
Cable
!
WARNING: RISK OF PERSONAL INJURY
BATTERY CONTAINS SULFURIC ACID WHICH CAN CAUSE SEVERE BURNS TO THE SKIN
AND EYES AND CAN DESTROY FABRICS. IF CONTACT IS MADE WITH SULFURIC ACID,
IMMEDIATELY FLUSH THE SKIN OR EYES WITH WATER FOR 15 MINUTES AND SEEK
IMMEDIATE MEDICAL ATTENTION.
+ 24V -
NON-RST
POWER
+ 24V -
RST
POWER
3
2
1
1
2
3
1 2 3 4
+ -
+ -

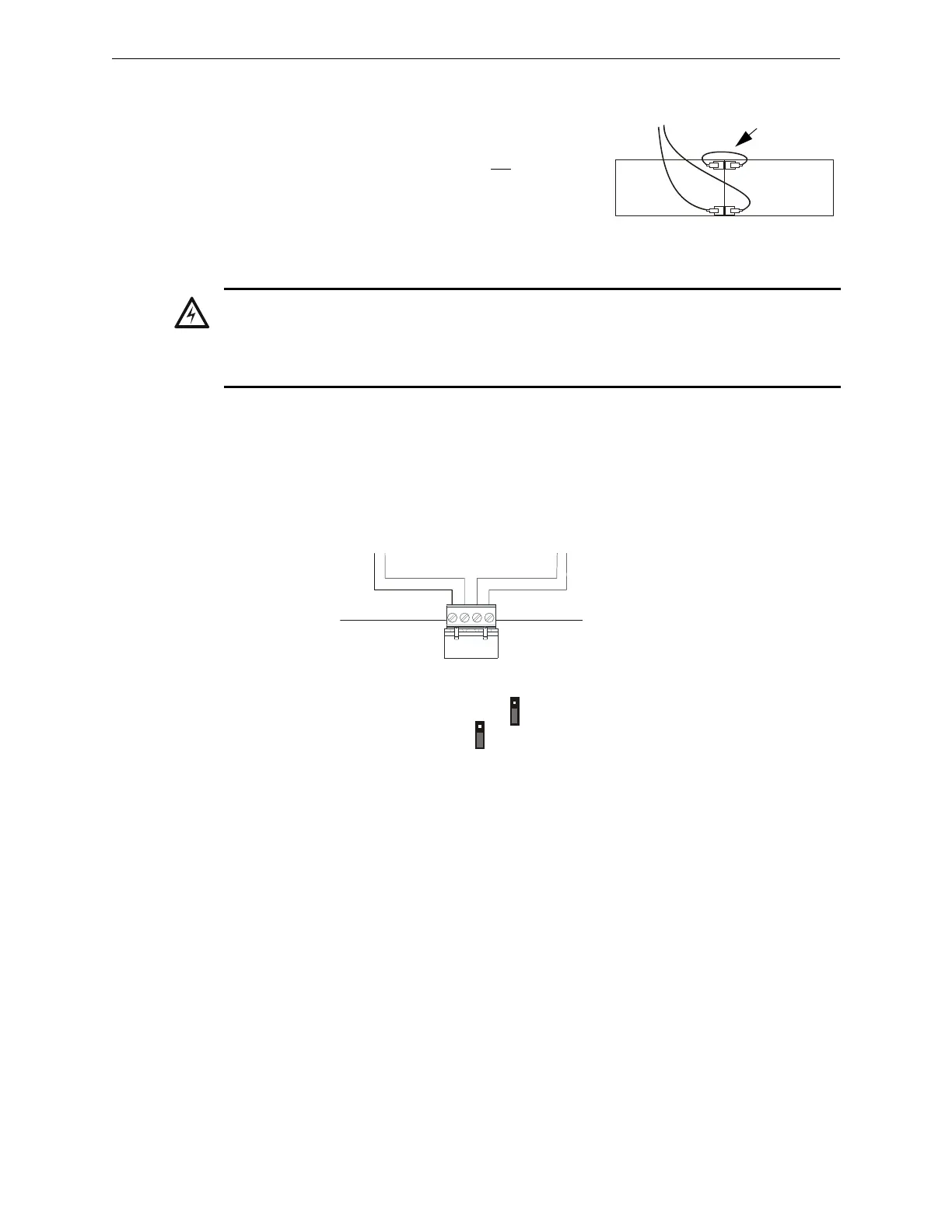

Figure 2.6 Special Application Power Outputs - 24 VDC
Power-limited Non-resettable or Resettable Power
1.0 amperes max., 24 VDC nominal filtered, non-
resettable or resettable power can be drawn from TB1
Terminals 1(+) and 2(-)
Power-limited Resettable or Non-resettable Power
1.0 amperes max., 24 VDC nominal filtered, resettable or
non-resettable power can be drawn from TB1 Terminals
3(+) and 4(-)
9
2
u
d
c
t
b
1
.
w
m
f
JP4
TB1
JP4 is used to configure TB1,
Terminals 1 & 2 for:
• Resettable Power - jumper pins
2 & 3 of JP4
• Nonresettable Power - jumper
pins 1 & 2 of JP4 as shown
JP6
JP6 is used to configure TB1,
Terminals 3 & 4 for:
• Resettable Power - jumper pins 2
& 3 of JP4
• Nonresettable Power - jumper
pins 1 & 2 of JP4 as shown
