MS-9200UDLS/E/C Manual — P/N 52750:F 7/26/2010 35
Accessories Product Description
ANN-LED Annunciator Module
The ANN-LED and ANN-RLED annunciator modules provide LED annunciation of general sys-
tem faults and input zones/points when used with a compatible FACP. The ANN-LED module pro-
vides alarm (red), trouble (yellow) and supervisory (yellow) indication for up to ten input zones or
addressable points. The ANN-RLED provides alarm (red) indication for up to 30 input zones or
addressable points. Multiple ANN-(R)LED modules may be used for full system coverage.

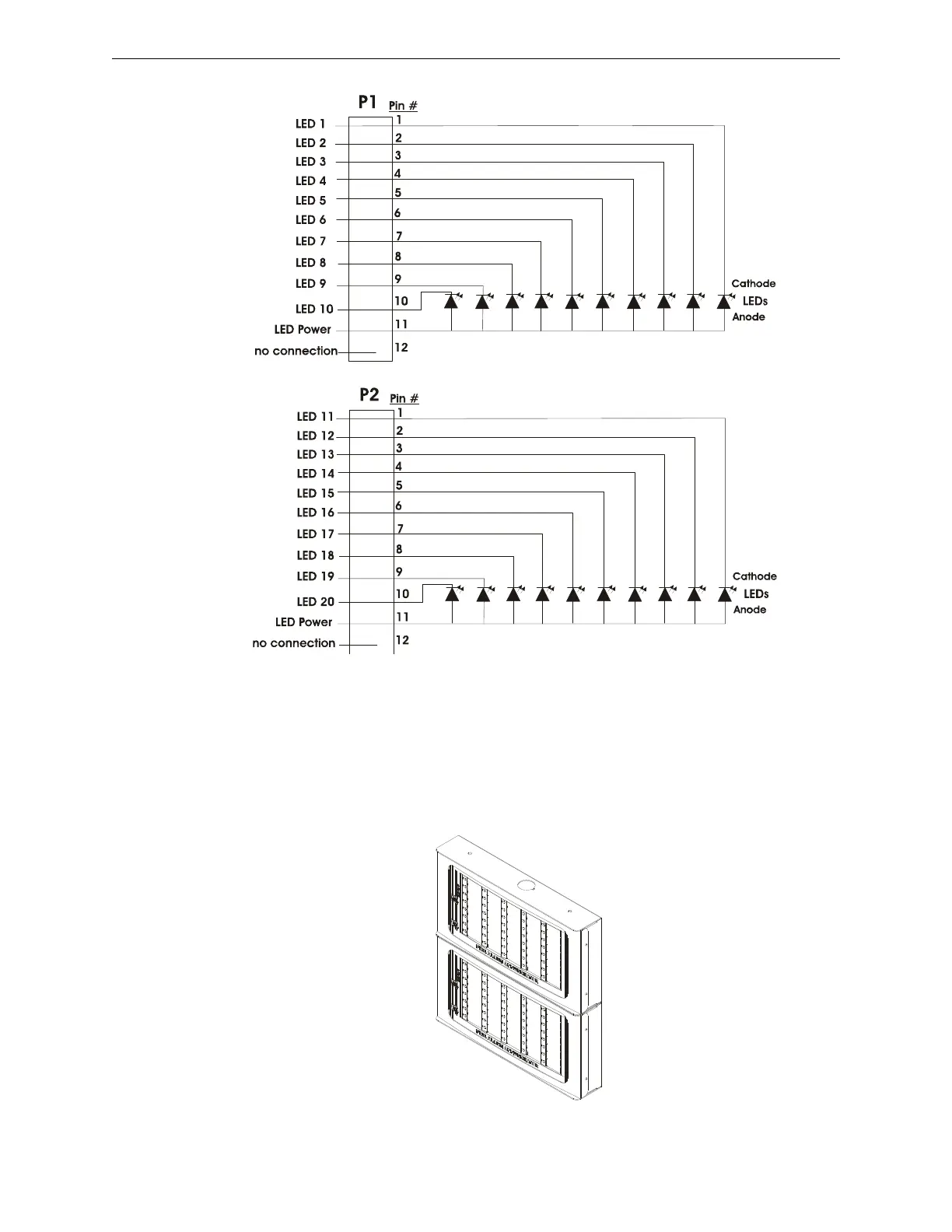

Figure 1.10 ANN-I/O LED Wiring
annI-Oleds.cdr
Figure 1.11 ANN-LEDs (shown in possible stacked configuration)
ann-ledstacked.wmf
