Fischer Panda 10000i - Exhaust Installation; Isolation Test

Installation Instructions
16.1.15 Kapitel/Chapter 5: Installation Instructions - Seite/Page 103

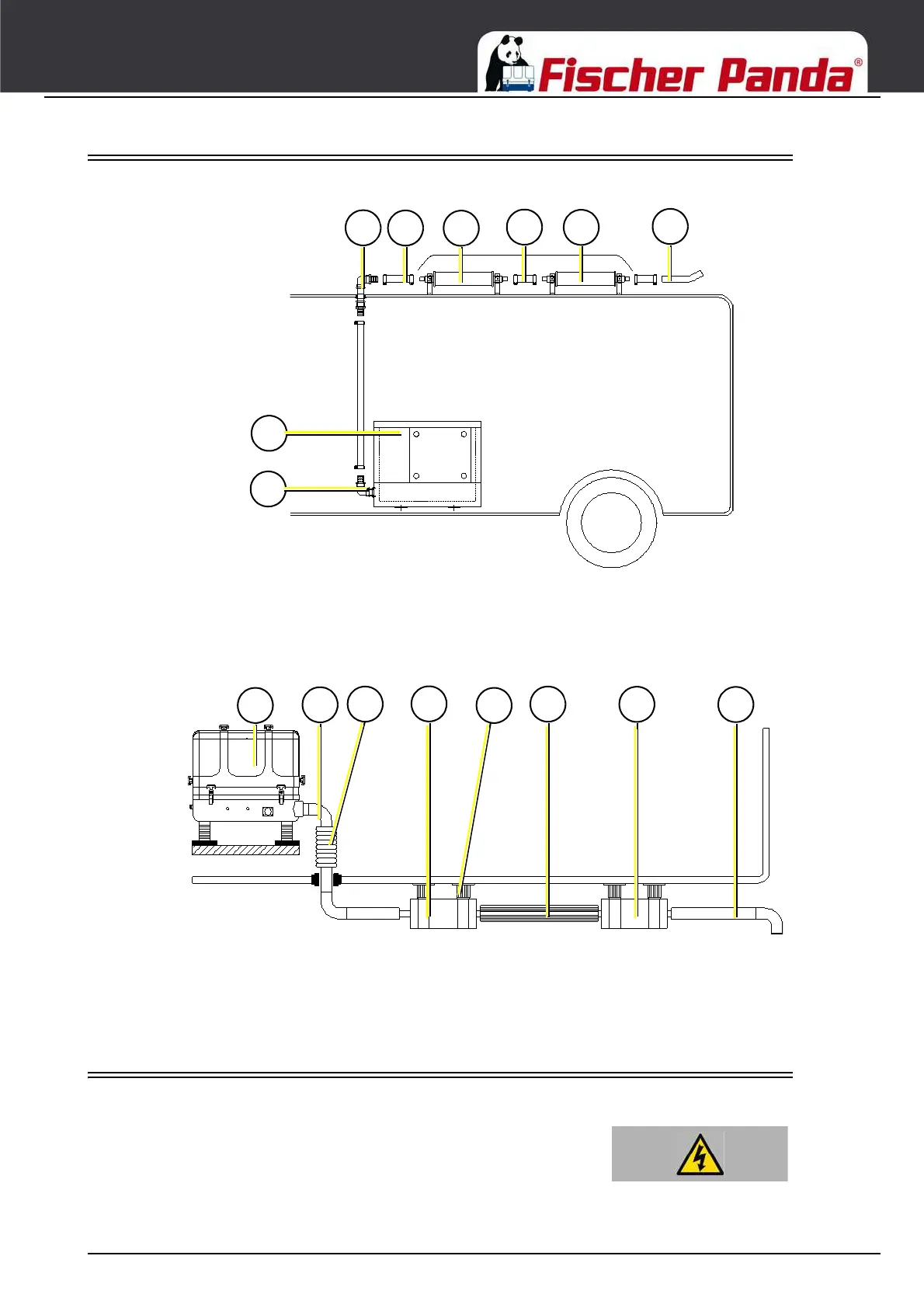

5.20 Exhaust installation
Fig. 5.20-1: Exhaust connection for roof outlet
Fig. 5.20-2: Exhaust connection for mounting below the vehicle
5.21 Isolation test
ATTENTION!After installation, but before the generator is set into
normal operation and handed to the customer, an
isolation test must be performed as followed:
1. Disconnect all load.
2. Start the generator.
3
2
1
4
5
6
7
8
1. Exhaust oulet
2. Generator
3. Dachdurchführung mit Winkel
4. Vibration damper
5. External pre-silencer
6. Exhaust pipe
7. External series silencer
1
2
3
4
5
6
7
8
1. Generator
2. Exhaust outlet
3. Compensator
4. External pre-silencer
5. Vibration damper
6. Exhaust pipe
7. External series silencer
8. End pipe
