Installation Instructions

16.1.15 Kapitel/Chapter 5: Installation Instructions - Seite/Page 77

5.9.3.1 Installation location for radiators for roof, side, or underfloor mounting on the

vehicle

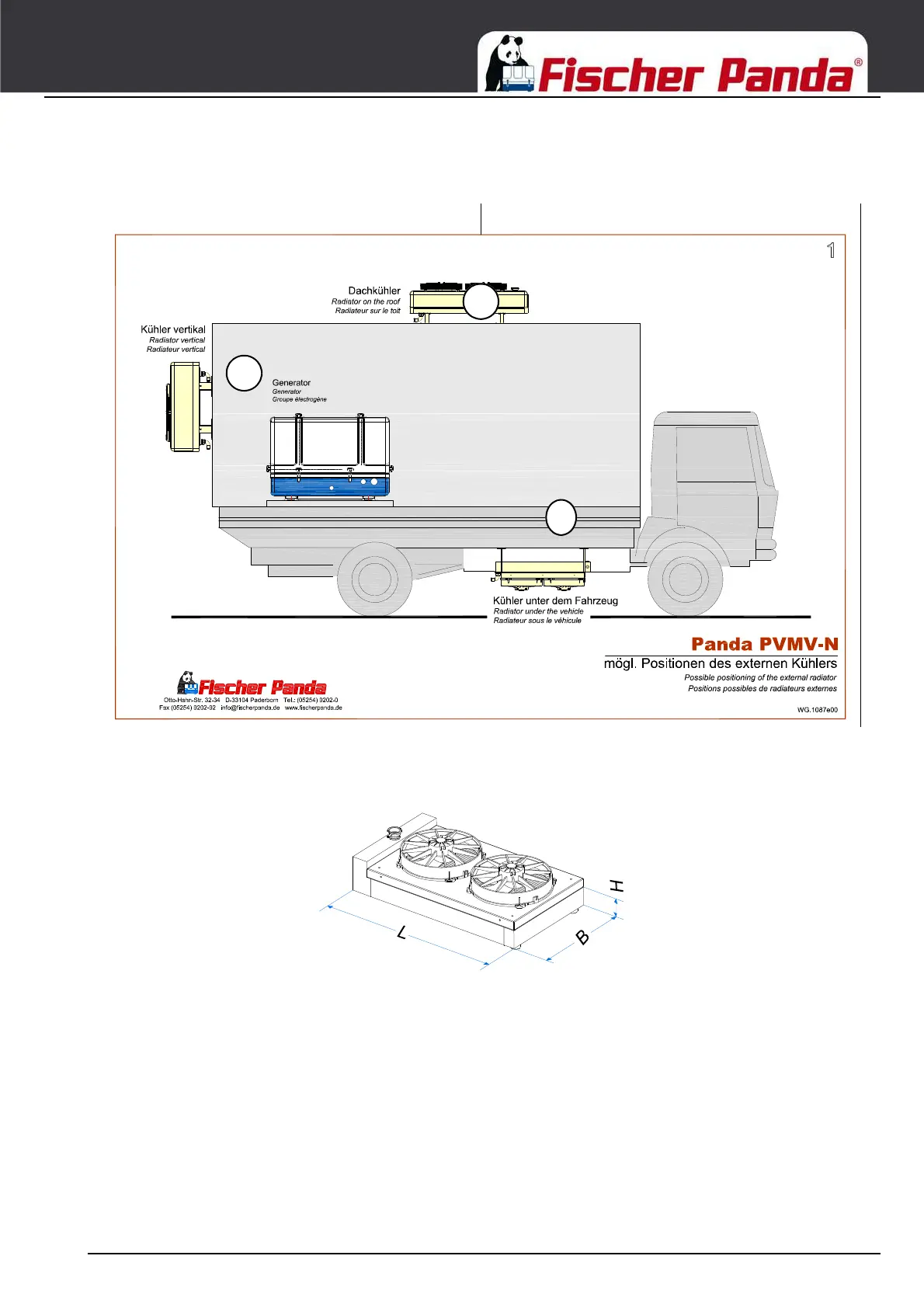

Fig. 5.9.3-1: Radiator installation - example

Fig. 5.9.3.1-2: Radiator dimensions

1. Radiator mounted on the roof

2. Radiator mounted in vertical position

3. Radiator mounted under the vehicle
