Installation Instructions
16.1.15 Kapitel/Chapter 5: Installation Instructions - Seite/Page 75

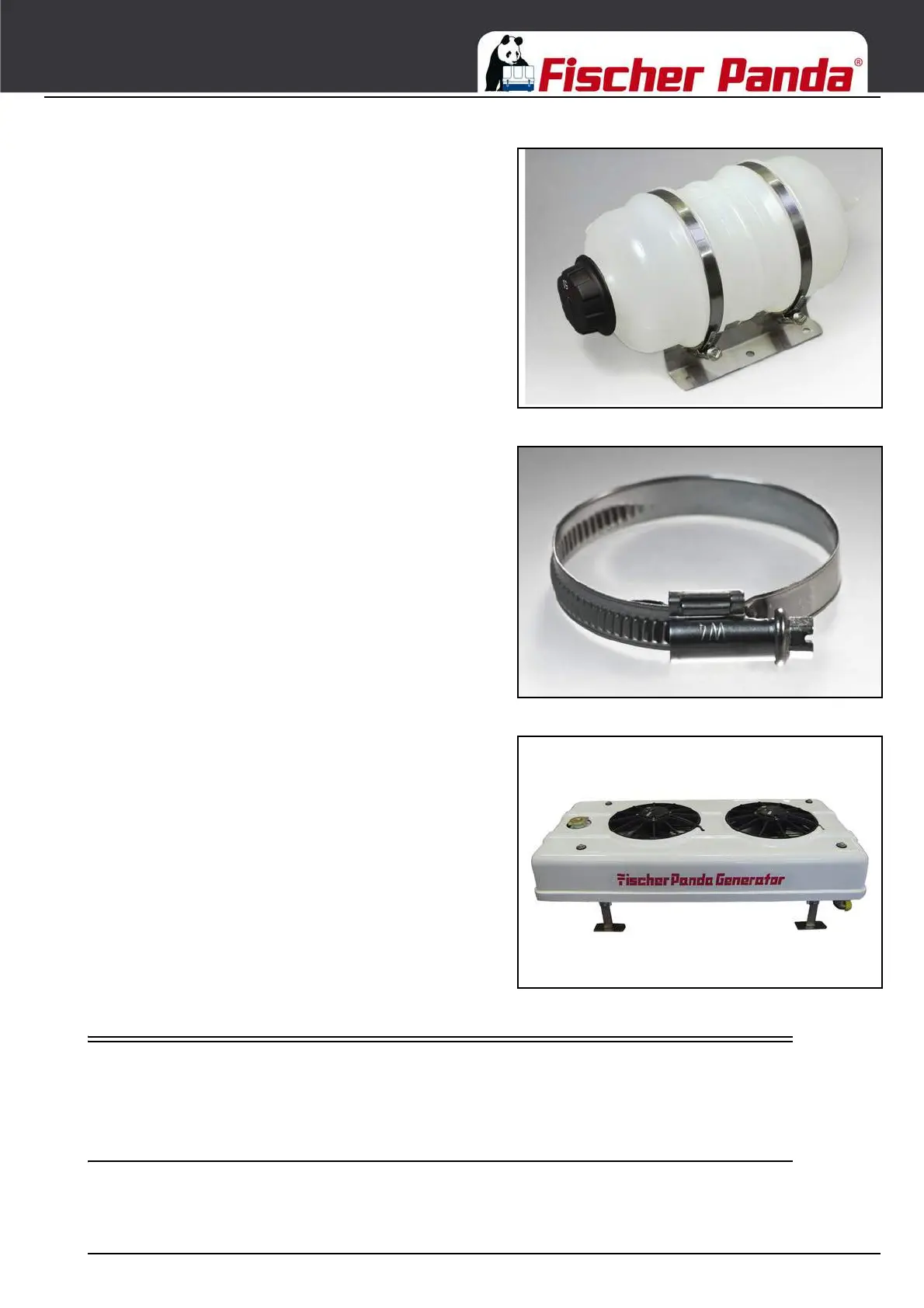

Fig. 5.8.2-6: External expansion tanksExternal expansion tanks
Example
Fig. 5.8.2-7: Hose clipsHose clips
Example
Fig. 5.8.2-8: RadiatorRadiator
Various radiator models are available for roof mounting, side
mounting, or underfloor installation.
The output levels are adapted to the generators and the
application (e.g. radiators with increased output for use in hot
regions).
Example
5.9 Radiator baseplate
The radiator baseplate shall be dimensioned in accordance with the purpose. The corresponding checks and entries
in the vehicle papers shall be implemented by the operator.
5.9.1 Determining the size of the radiator
The size of the radiator must be dimensioned in accordance with the total thermal load, the operating conditions,
and the installation situation.
