7.13 Replacing the Injection Nozzles
NOTE:Representative procedureThe described procedure is representative for Fischer Panda
generators. The original location of the item must be taken
from the generator description of this manual. All
replacements and repairs should be done by a trained
person.
ATTENTION!Ensure that the generator cannot be started up
accidentally. Remove battery main switch.

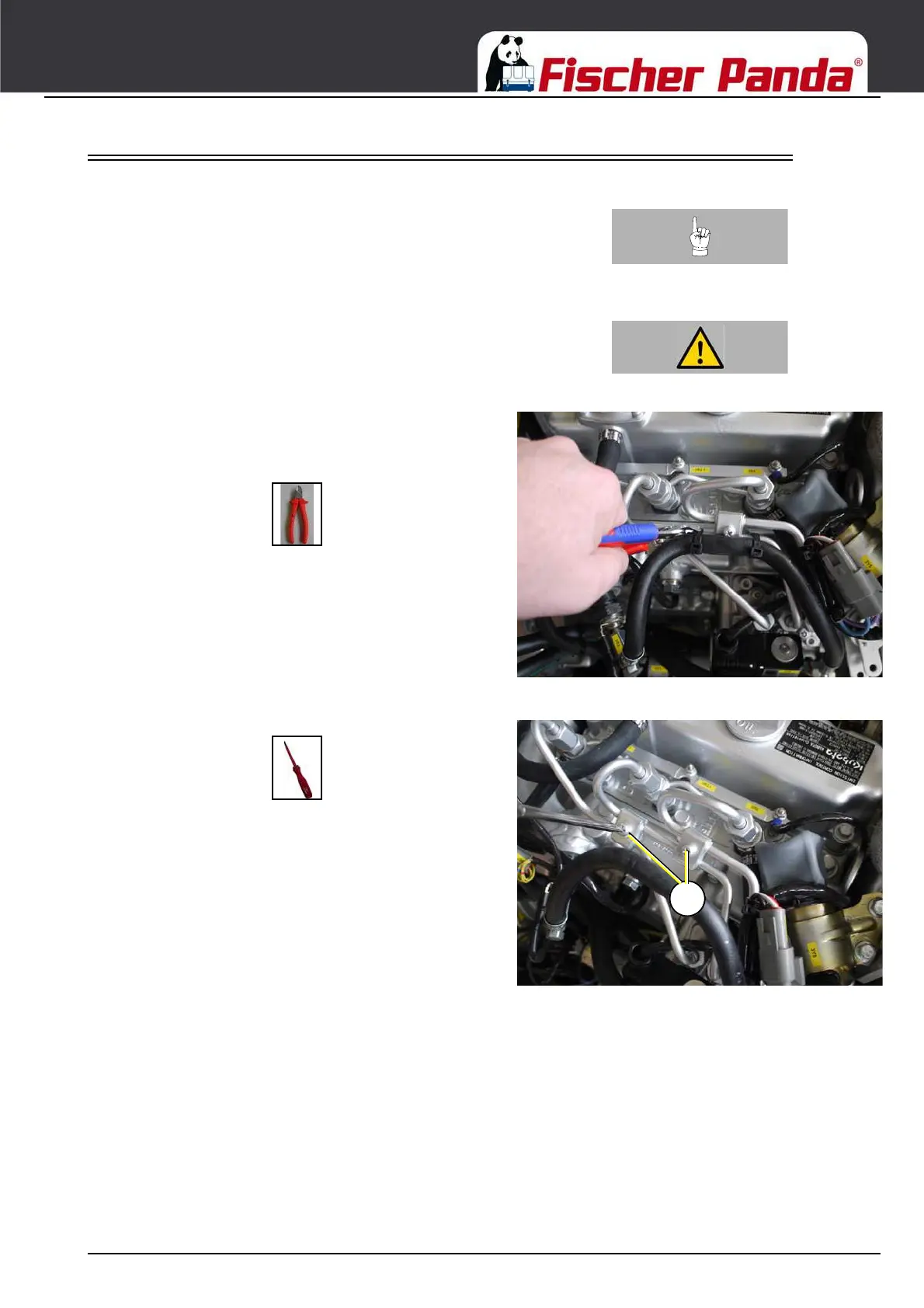

Fig. 7.13-1: Injection nozzlesInjection lines
Figures similar!
1. Remove cable ties from the injection lines.
Fig. 7.13-2: Injection nozzles2. Loosen the pipe clamps (1) using a PH2 phillips
screwdriver.
