Fischer Panda 10000i - Front View

The Panda Generator
Seite/Page 42 - Kaptitel/Chapter 4: The Panda Generator 16.1.15
4.1.4 Front view

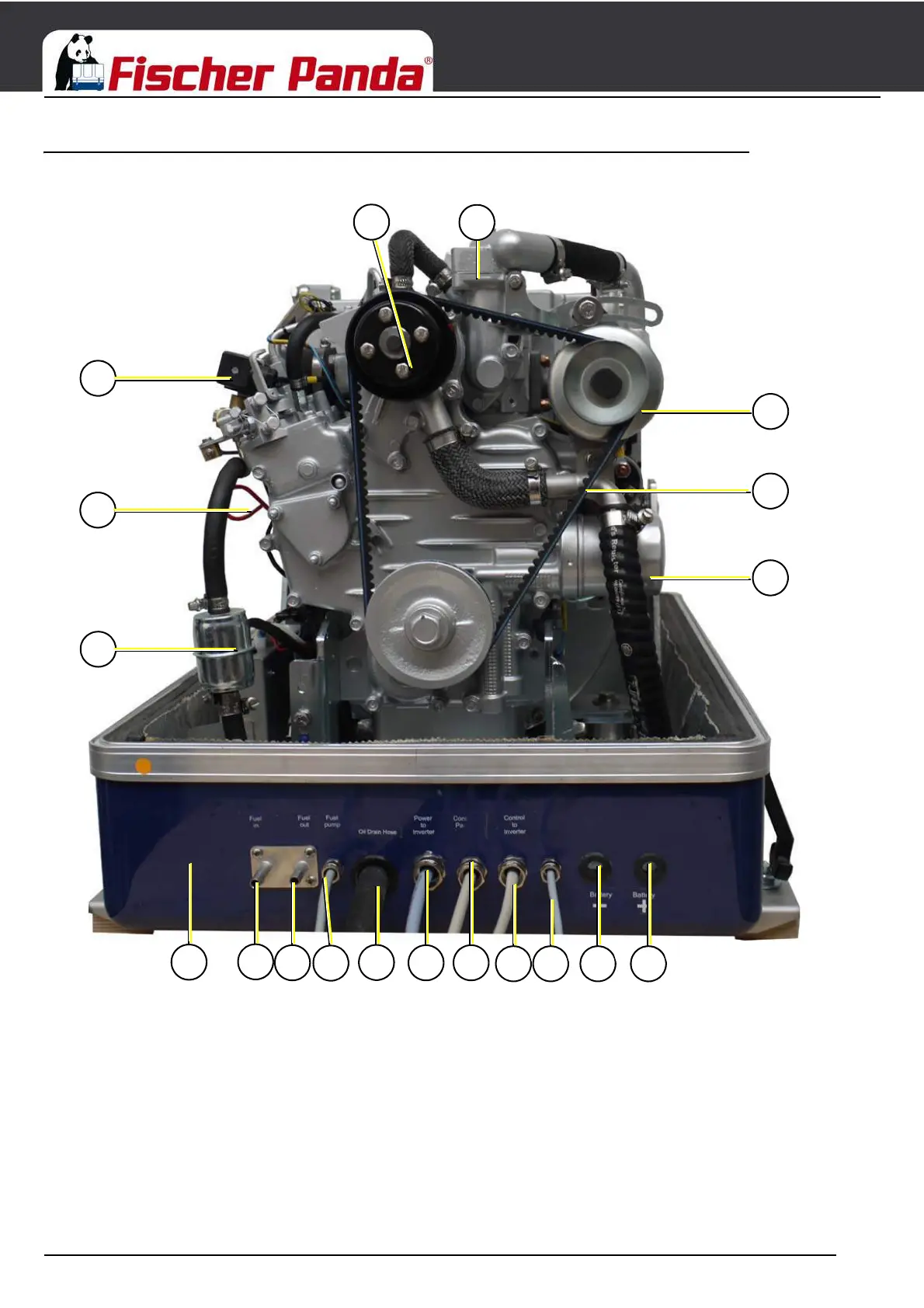

Fig. 4.1.4-1: Front view
05
04
08
09
14
06
07
18
15
02
01
03
16
10
11 13
19
17
12
01) Fuel stop solenoid
02) Oil dipstick
03) Fuel filter
04) Sound cover base part
05) Fuel IN
06) Fuel OUT
07) Cable for fuel pump
08) Oil drain hose
09) Cable for PMGi 8000i inverter
10) Cable for iControl panel
11) Cable for FP bus to PMGi
12) DP+ put
12) Passage for starter battery cable (-)
13) Passage for starter battery cable (+)
15) Oil filter
16) V-belt
17) DC-alternator
18) Thermostat housing
19) Pulley for internal cooling water pump
