Fischer Panda 10000i - Front and Back Side Connections

Inverter Panda PMGi 8000 / PMGi 10000
16.1.15 Kapitel/Chapter 16: Inverter Panda PMGi 8000 / PMGi 10000 - Seite/Page 205

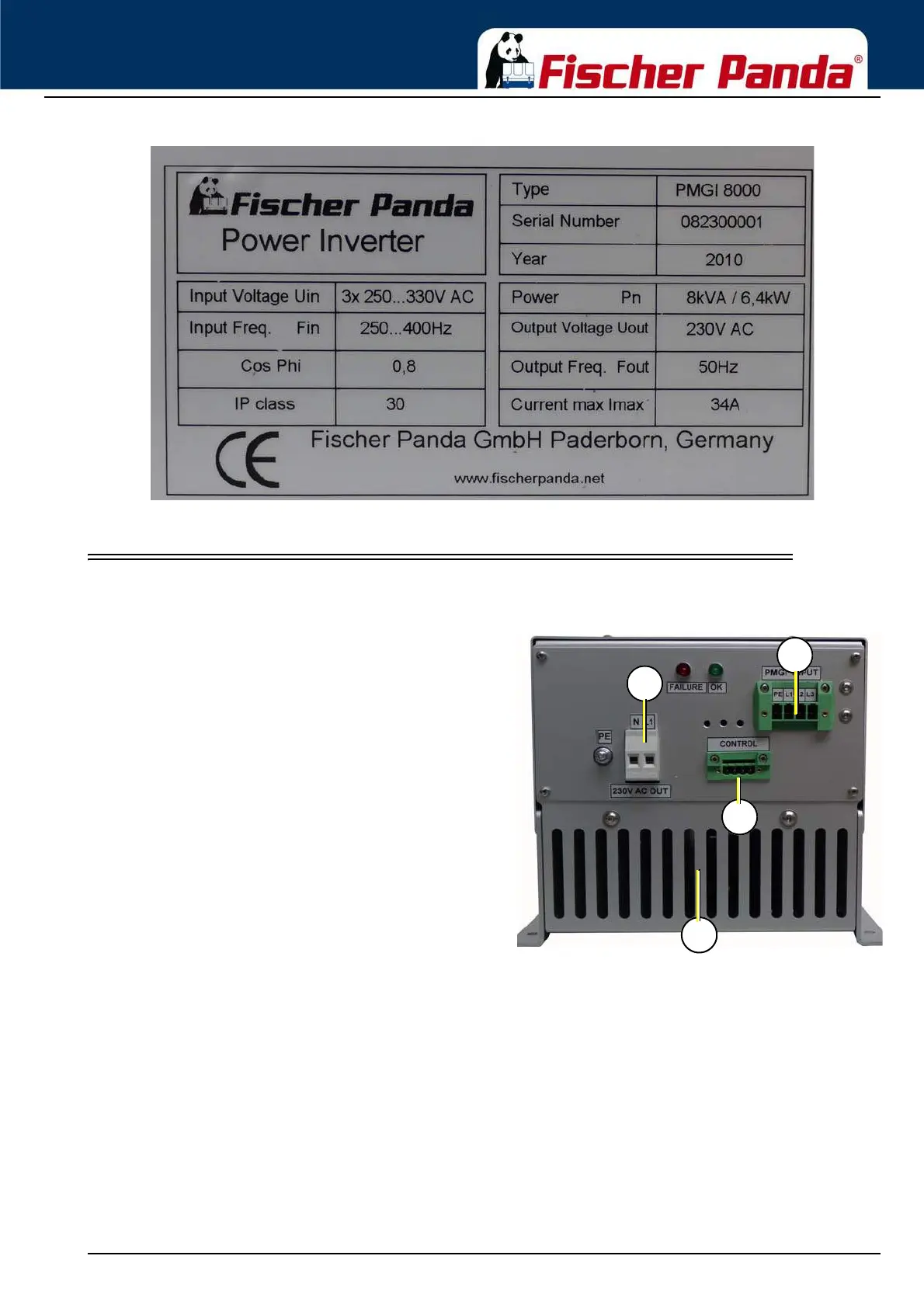

Fig. 16.2-2: Type plate
16.3 Front side/connection side
Fig. 16.3-1: Connection sideTo connect the PMGi use the prepared cable with t he 4pin
plug and connect to socket 3 (PMGi in-450V/400Hz)
Connect your termination box with the socket 1. Use a 3pin
plug (230V/50Hz AC - PMGi out)
Do not cover the Air out grille (2)
1. Socket for Load
2. Air out grille
3. Socket for generator connection
4. FP- Bus socket connection to generator
3
1
2
4
