7.18 Replacing the Water Pump at Kubota 02 series
NOTE:Representative procedureThe described procedure is representative for Fischer Panda
generators. The original location of the item must be taken
from the generator description of this manual. All
replacements and repairs should be done by a trained
person.
ATTENTION!Hot surface! Burn hazard!

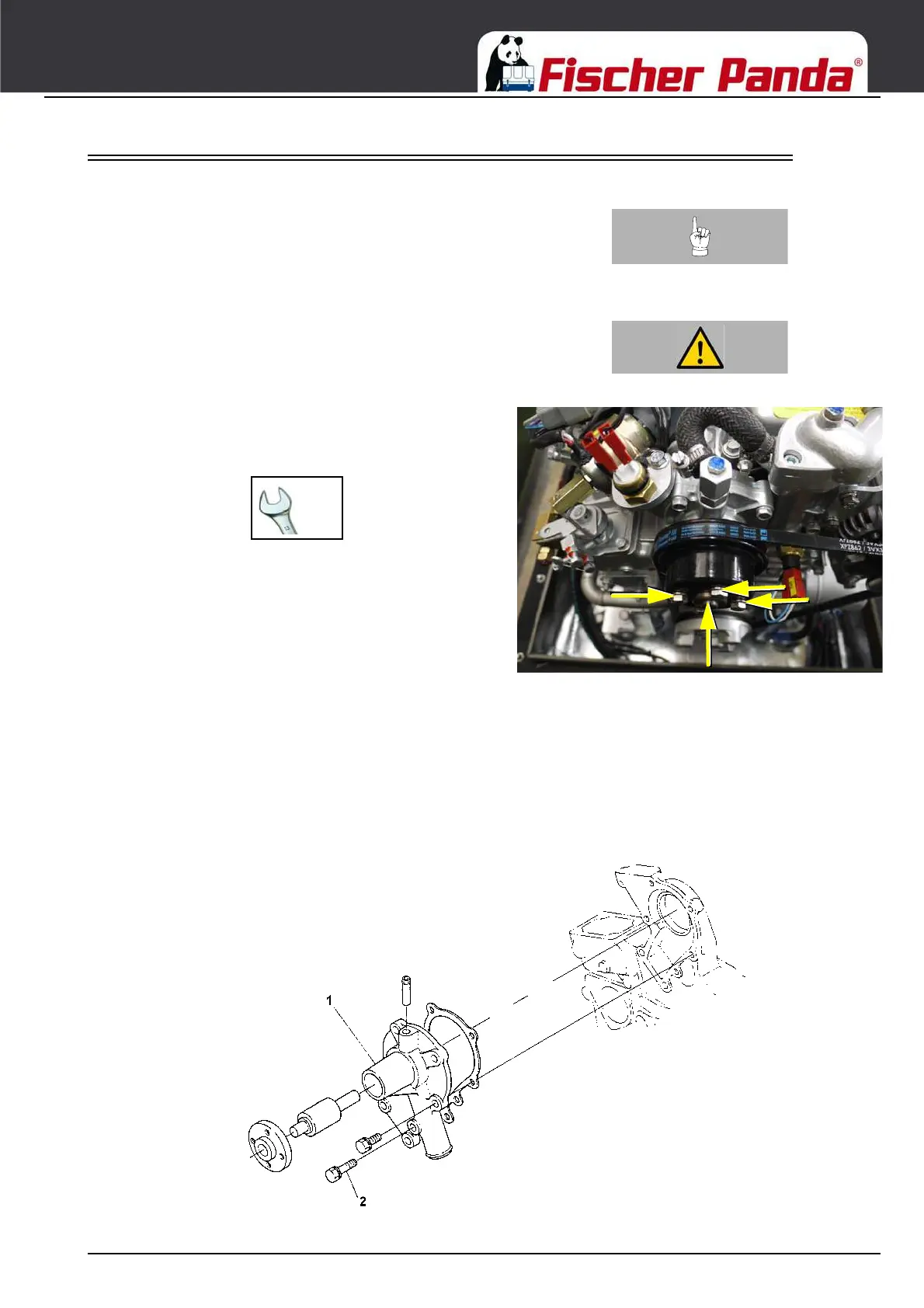

Fig. 7.18-1: Pulley1. Drain cooling water from entire system.
2. Remove V-belts, see „Replacement of the V-Belt in this
manual“
3. Remove all 4 screws on the pulley. W.A.F: 10 mm
4. Remove pulley.
5. For reinstallation, clean the pulley.
6. Remove the water pump fixing screws (2) and remove the
water pump (1) from the transmission housing. Wrench
with width across flats of 10 mm.
For reinstallation:
• Apply liquid sealant (Three Bond 1215 or equivalent) to both
sides of the new water pump gasket.
• To reinstall, reverse the order of steps.
7. Refill cooling water.
8. De-aerate the cooling water system.
9. Perform test run.
Fig. 7.18-2: Water pump
1. Water pump 2. Hex screw
