Maintenance Instructions

16.1.15 Kapitel/Chapter 7: Maintenance Instructions - Seite/Page 143

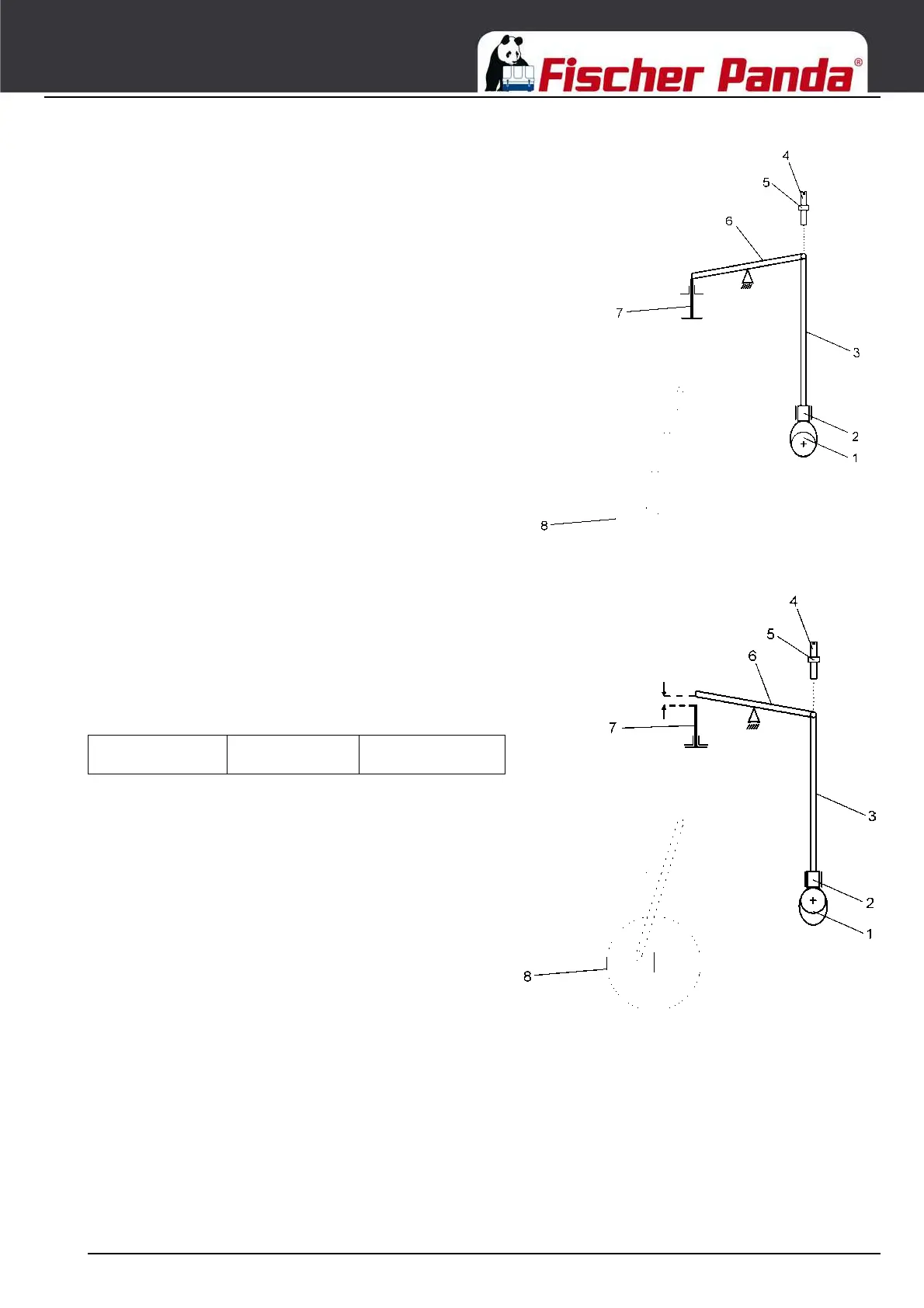

Fig. 7.19-1: Valve open1. Cam shaft

2. Cam follower

3. Push rod

4. Adjusting screw

5. Counter nut

6. Rocker arm

7. Valve

8. Crankshaft

Fig. 7.19-2: Valve closed1. Cam shaft

2. Cam follower

3. Push rod

4. Adjusting screw

5. Counter nut

6. Rocker arm

7. Valve

8. Crankshaft

Clearance of intake and

discharge valve (cold)

Factory specification 0.145 to 0.185 mm

0.00571 to 0.00728 inch
