DC100 MAX Digital Dispenser Operating Manual
© 2023 Fisnar - 15 - DC100 MAX Rev 4
1.

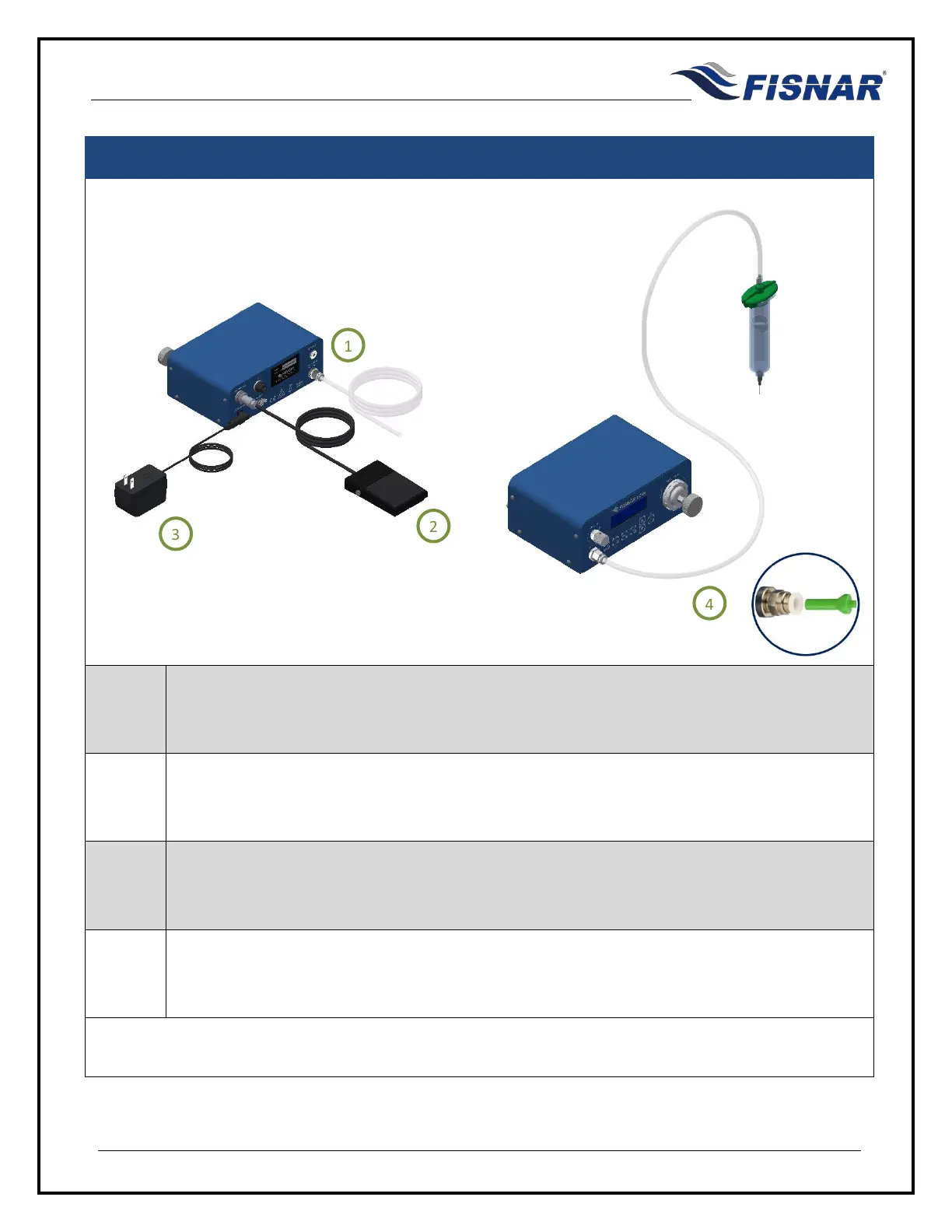

Connect the air hose from a compressed air supply source 70-100 psi (5-7 bar) to the “Air
In” port on the back of the machine.
2.
Insert the foot pedal connector plug into the “Foot Switch" connector on the back of the
machine.
3.
Attach the appropriate country type plug adapter onto the power supply and then connect
the electrical power cord to the port on the back of the machine.
4.
Connect the end of the adapter head assembly with the green colored push to connect fitting,
to the “Air Out” port on the front of the machine.
