DC100 MAX Digital Dispenser Operating Manual

DISPENSE SETUP

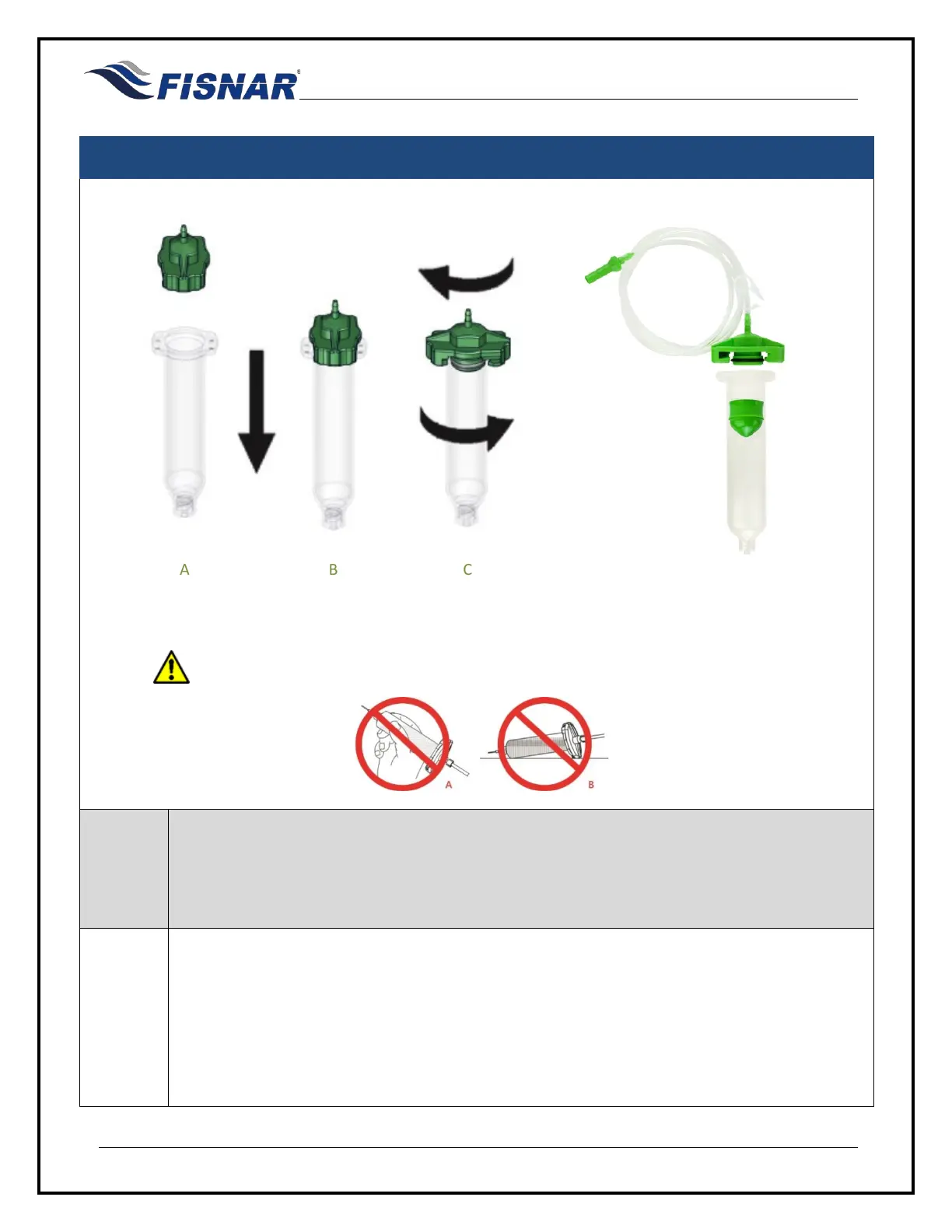

Attach the syringe barrel adapter head assembly to the syringe barrel (with piston fitted inside) as shown

below. See FIG. 1 (A – C).

FIG. 1: Dispense Setup

Do not overfill the syringe barrel and/or lay the syringe barrel on its side. This will

prevent fluids from flowing back into the machine – refer to figures A & B below.

Place the filled syringe barrel in the supplied syringe barrel stand (5601969) when

not being used.

Connect the syringe barrel adapter head assembly to the “Air Out” port on the front of the

machine. Fisnar adapter head assemblies are fitted with a green colored push to connect

fitting (5606038) that can be inserted directly into the “Air Out” port on the front of the

machine.

If a syringe barrel adapter head assembly with 5/32” OD tubing is being

used with the

machine that has a bayonet fitting attached to the end of it, make sure to cut the bayonet

fitting off from the tubing first. Then install the included push to connect air adapter fitting

(5779K712) onto the tubing and insert it into the “Air Out” port on the front of the machine.

If a syringe barrel adapter head assembly with 1/4” OD tubing is being

used with the

machine, cut the bayonet fitting off from the tubing and insert it directly into the “Air Out” port.
