8.4 Disassembling the FLUDEX coupling
M4602-02en Edition 09/2022 59





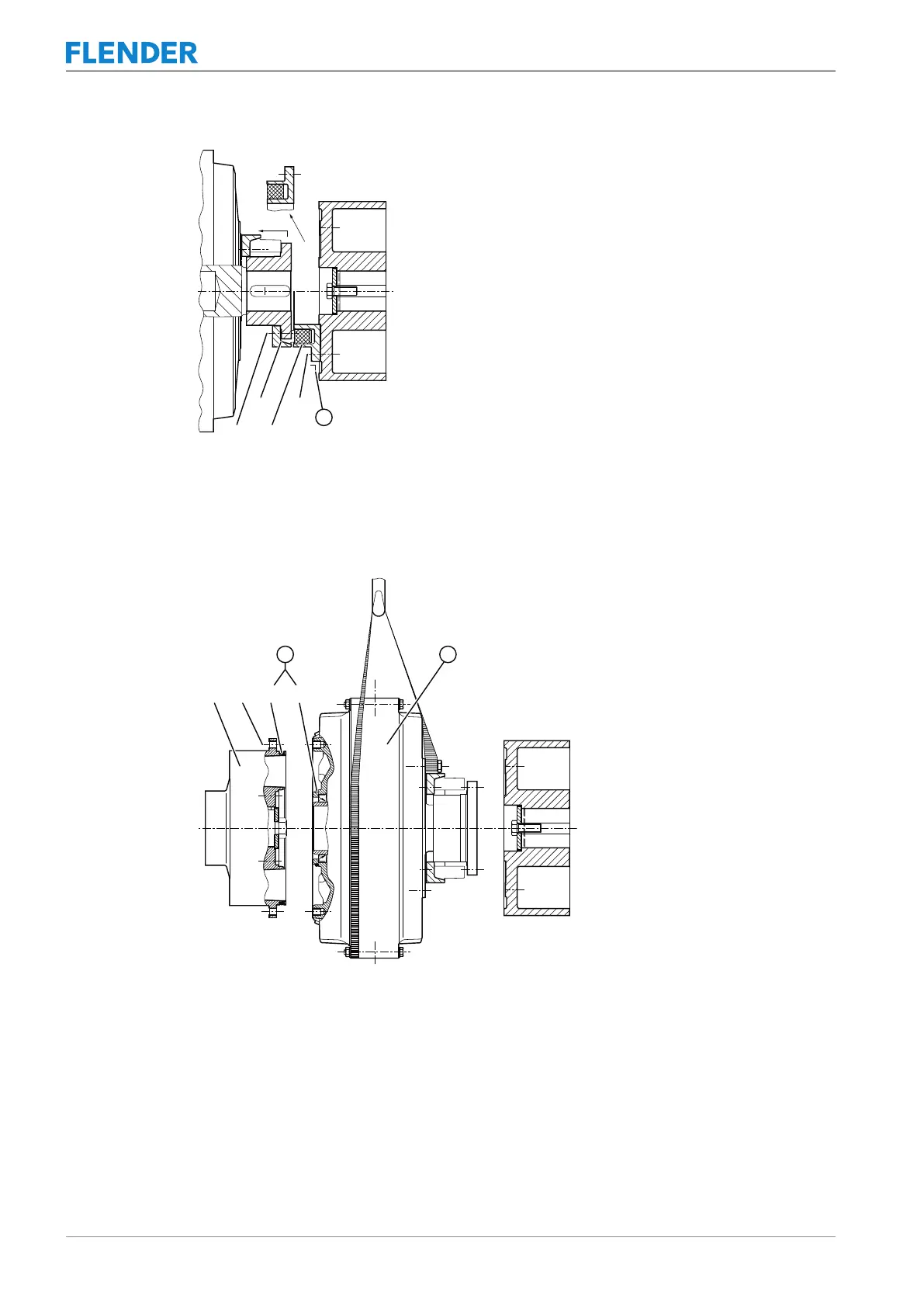

① Marking
7. Loosen the bolts (139).
8. Separate the main coupling axially from the hub carrier part (120) and remove the main
coupling radially.
Ensure that the O-rings (117, 138) are exposed.



① O-rings
② Main coupling
8.4.2 Disassembling type FNA8.4 Disassembling the FLUDEX coupling
Procedure
With type FNA, one of the machines must be moved axially to remove the main coupling.
