Replacement parts

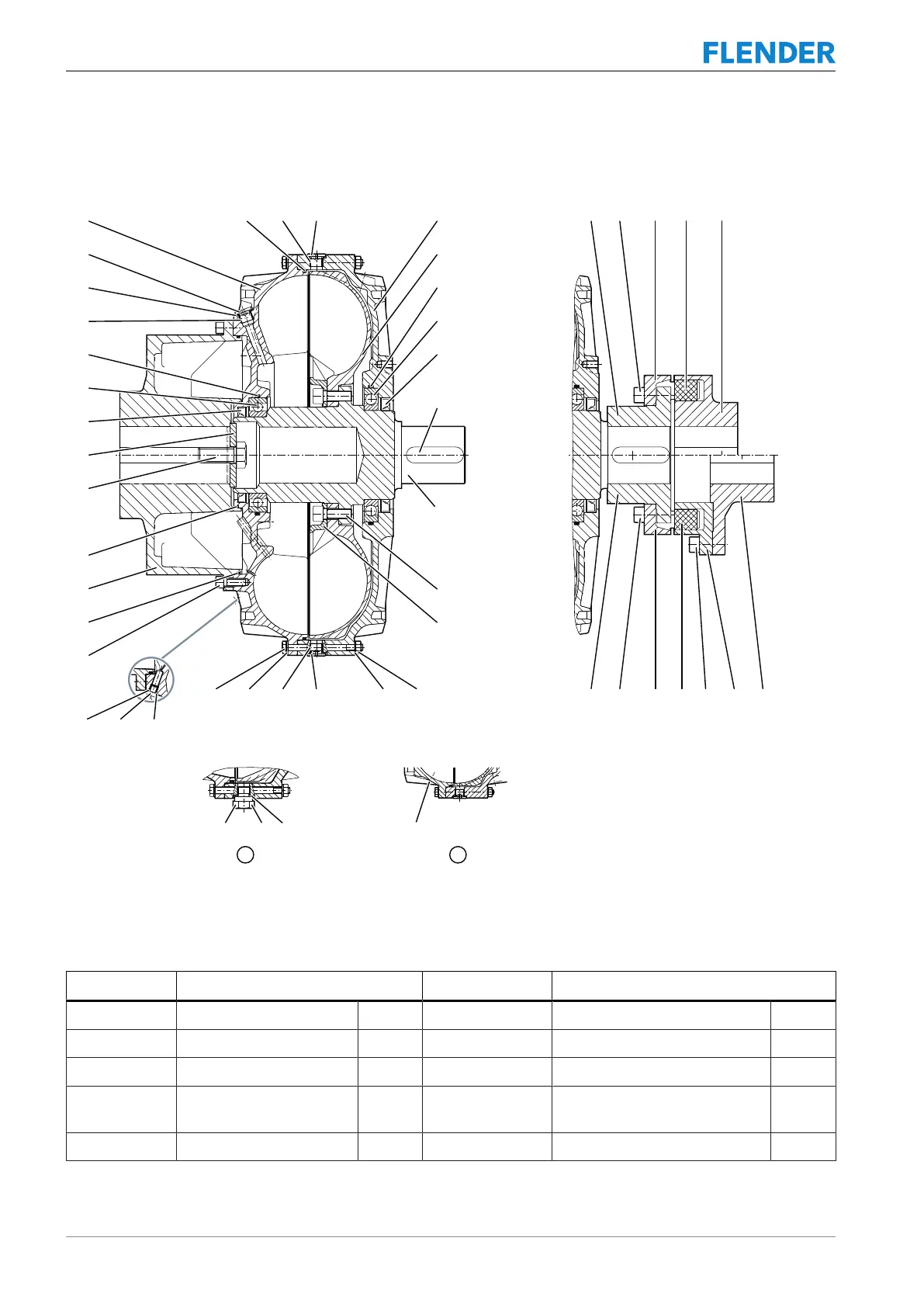

11.2 Spare parts drawing and spare parts list
68 Edition 09/2022 M4602-02en
)1'
)1$)12
① Version with thermal circuit breaker / with EOC transmitter EOC
② Position of the fusible safety plugs for FLUDEX size 887
Part number Designation Part number Designation
1 Coupling part 1 (N-EUPEX) 117 O-ring D*
2 Coupling part 2 (N-EUPEX) 118 Parallel key
3 Coupling part 3 (N-EUPEX) 120 Hub carrier part
10 Coupling part 10 (N-
EUPEX)
122 Stepped ring E
11 Coupling part 11 125 O-ring L
