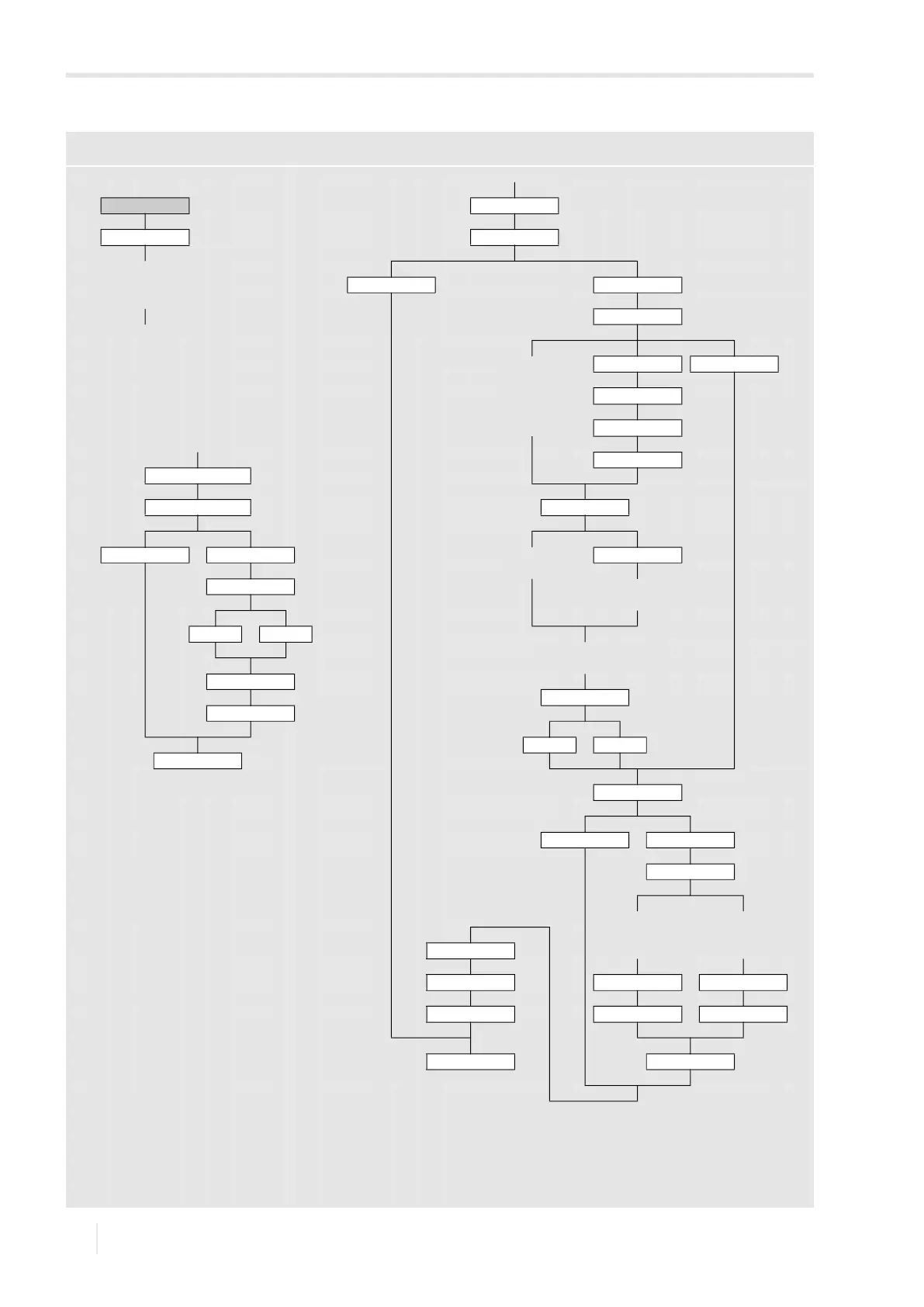

A Menu structure PIOX R721
2021-09-01, UMPIOX_R721V1-3EN
100
Configuration of inputs
Inputs Voltage
Configure inputs Ux Enable
→ Temperature
→ Current
→ Voltage
→ Binary
No Yes
Source item
→ Temperature
→ Pressure
→ Density
→ Kin. viscosity
→ Dyn. viscosity
→ Sound speed
Customized Voltage
Input name
Unit of measurement
Decimal places
Binary
Bx Enable Input range
No Yes
→ 0…20 mA
→ 4…20 mA
Other range
Negate input
→ Input MIN U
→ Input MAX U
Yes No
→ Start of meas. range
→ End of meas. range
Input info
Error value
Test signal
Yes No
Inputs
Trigger value
No Yes
Function
→ Within range
→ Out of range
→ MAX (x>limit)
→ MIN (x<limit)
→ ERR (x=fail)
Input info
Test signal Range center Trigger value
Test mea. range Range width Hysteresis
Inputs Glitch interval
