6 Mounting
6.1 Transmitter PIOX R721
2021-09-01, UMPIOX_F72xV1-3EN
22
Transmitter with aluminum housing
Close the housing cover pressing it slightly upwards on the side of the screws.
Hand-tight all screws of the transmitter housing.
6.1.2 Installation of the transmitter
6.1.2.1 Wall mounting
Transmitter with stainless steel housing
Fix the transmitter to the wall using 4 screws.

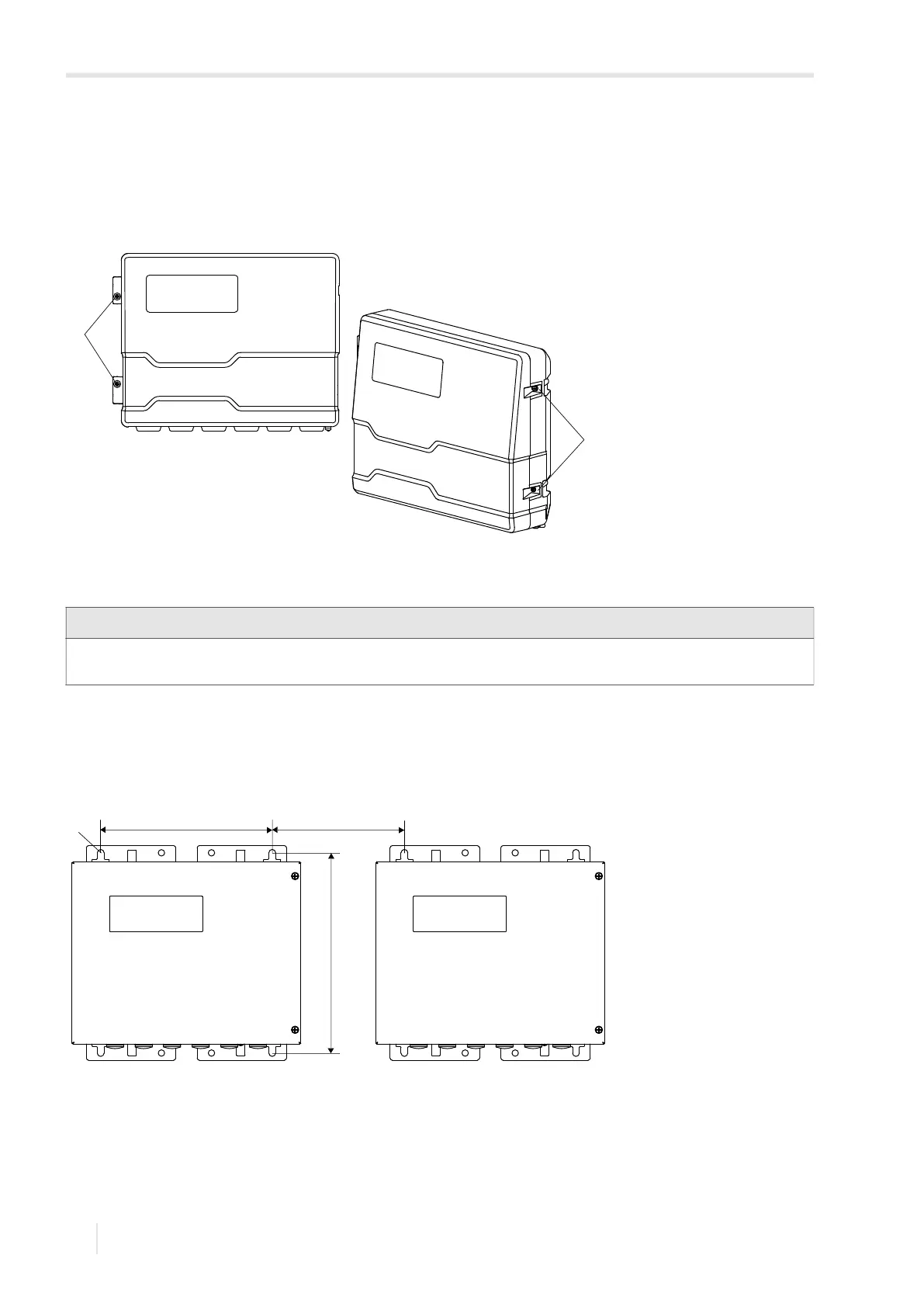

Fig. 6.2: Transmitter
1 screws
Notice!
Install the equipment in a shady place, the cable glands facing downward. Observe the temperature and weight
indications according to the technical specification when choosing the fixation elements and the place of installation.
Fig. 6.3: Transmitter (dimensions in mm)
1 fixing hole for wall mounting Ø 9.5
1
1
1
240
280
min. 130
