6 Mounting
PIOX R721 6.1 Transmitter
23
UMPIOX_F72xV1-3EN, 2021-09-01
Transmitter with aluminum housing
Fix the wall mount (2) with 3 countersunk-head screws (3) firmly to the wall.
Attach the transmitter (1) to the lower hooks (7) of the wall mount.
Fix the transmitter to the wall mount by locking the stop bolt (4) into the destined hole and by firmly tightening the
screw (5).

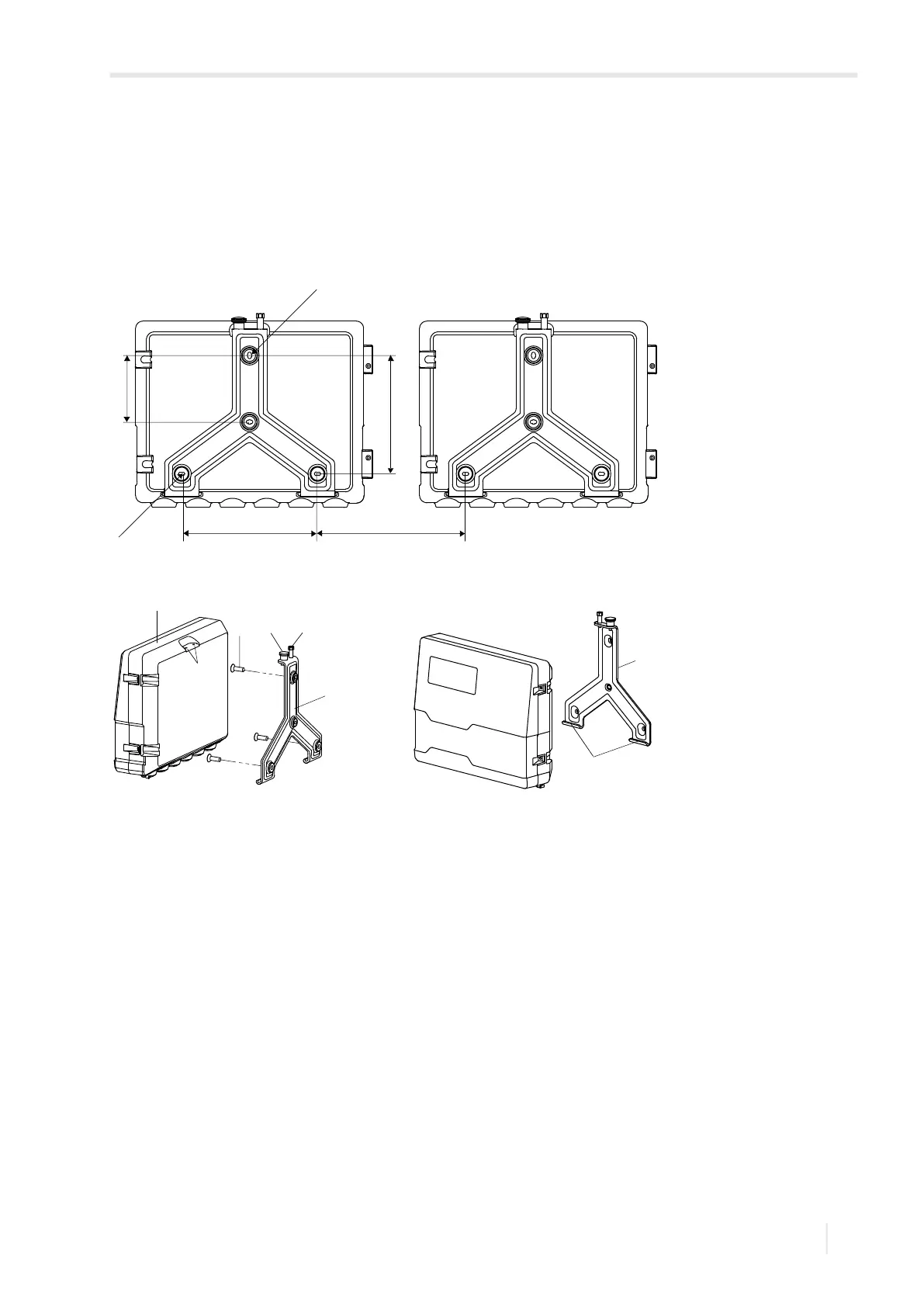

Fig. 6.4: Transmitter (dimensions in mm)
Fig. 6.5: Installation view
1 transmitter
2 wall mount
3 countersunk-head screw
4 stop bolt
5 screw
6 hole
7 hook
165.6
9 × 5
Ø 6.2
9 × 5
190.2 min. 180
93
2
1
5
3
6
2
7
4
